| Fitting position | front axle |
| Height (mm) | 48.4 |
| Outer diameter (mm) | 320 |
| Bolt hole circle Ø (mm) | 108 |
| Quantity required | 2 |
| Num. of holes | 5 |
| Brake disc thickness (mm) | 25 |
| Centering diameter (mm) | 63.6 |
| Min. thickness (mm) | 23 |
| Brake disc type | vented |
| Manufacturer | Productnumber |
| ford | 1 368 548 , 1368548 |
| ford | 1 384 290 , 1384290 |
| ford | 1 677 434 , 1677434 |
| ford | 1 724 956 , 1724956 |
| ford | 1 746 793 , 1746793 |
| ford | 1 770 767 , 1770767 |
| ford | 1 829 608 , 1829608 |
| ford | 1 844 117 , 1844117 |
| ford | 3M51-2C375-CB , 3M512C375CB |
| ford | 3M51-2C375-CC , 3M512C375CC |
| ford | 3M51-2C375-CD , 3M512C375CD |
| ford | 3M51-2C375-CE , 3M512C375CE |
| ford | 9M51-2C375-AA , 9M512C375AA |
| ford | CV61-1125-FA , CV611125FA |
| ford | CV61-1125-GA , CV611125GA |
| ford | DV61-1125-FA , DV611125FA |
| Usage numbers |
| MBD2125 |
| APEC DSK2489 |
| APEC DSK2981 |
| APEC SDK6495 |
| APEC SDK6740 |
| ATE 24.0125-0197.1 |
| ATE 24.0125-0209.1 |
| ATE 24.0325-0197.1 |
| BLUE PRINT ADF124351 |
| BORG & BECK BBD5348 |
| BORG & BECK BBD5925S |
| BOSCH 0 986 479 310 |
| BOSCH 0 986 479 660 |
| BOSCH 0 986 479 C75 |
| BREMBO 09.A728.10 |
| BREMBO 09.A728.11 |
| BREMBO 09.A728.1X |
| BREMBO 09.C542.10 |
| BREMBO 09.C542.11 |
| BREMBO 09.C542.1X |
| COMLINE ADC1242V |
| COMLINE ADC1258V |
| COMLINE ADC1768 |
| COMLINE ADC2844V |
| COMLINE AND6173 |
| COMLINE AND6514 |
| COMLINE AND7031 |
| FEBI BILSTEIN 43870 |
| FERODO DDF1649 |
| FERODO DDF1649-1 |
| FERODO DDF1649C-1 |
| FTE BS7179 |
| FTE BS7179B |
| HELLA 8DD 355 120-361 |
| HELLA PAGID 55622PRO |
| HELLA PAGID 8DD 355 113-001 |
| HELLA PAGID 8DD 355 120-361 |
| HELLA PAGID 8DD 355 128-541 |
| JAPANPARTS DI-0310 |
| JAPANPARTS DI-0310C |
| LPR F1039V |
| LPR V1005V |
| METELLI 23-0892C |
| METELLI 23-1512C |
| MEYLE 715 521 0035/PD |
| MINTEX MDC1800 |
| MINTEX MDC1800C |
| MINTEX MDC2570 |
| MINTEX MDC2739 |
| NK 202592 |
| NK 204850 |
| NK 312592 |
| NK 314850 |
| REMSA 61223.10 |
| REMSA 61561.10 |
| ROADHOUSE 61561.10 |
| sbs 1815202592 |
| sbs 1815312592 |
| SWAG 50 94 3870 |
| TEXTAR 92149100 |
| TEXTAR 92149105 |
| TEXTAR 92262203 |
| TRW DF6662S |
| VAICO V25-80022 |
| VALEO 197143 |
| VALEO 672552 |
| ZIMMERMANN 250.1372.20 |
| ZIMMERMANN 250.1372.52 |
| ZIMMERMANN 610.3709.20 |
| ZIMMERMANN 610.3709.52 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 ford |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

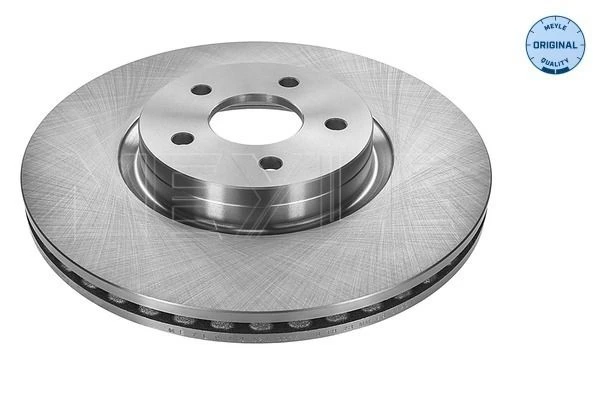

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
