    Schaeffler INA

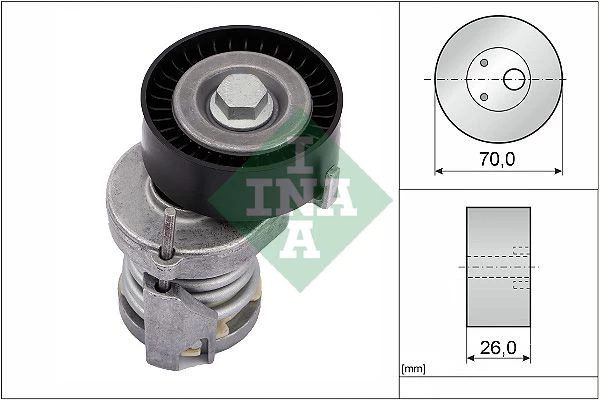

    Outer diameter (mm) 70
    Width (mm) 26
    Svhc no svhc present!
    Product number: 534 0123 20

    Ina Belt Tensioner V-ribbed Belt For Audi Seat Skoda Vw Vw (Svw) A2 Altea Altea

    Price excl. vat.
    £ 37,50

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

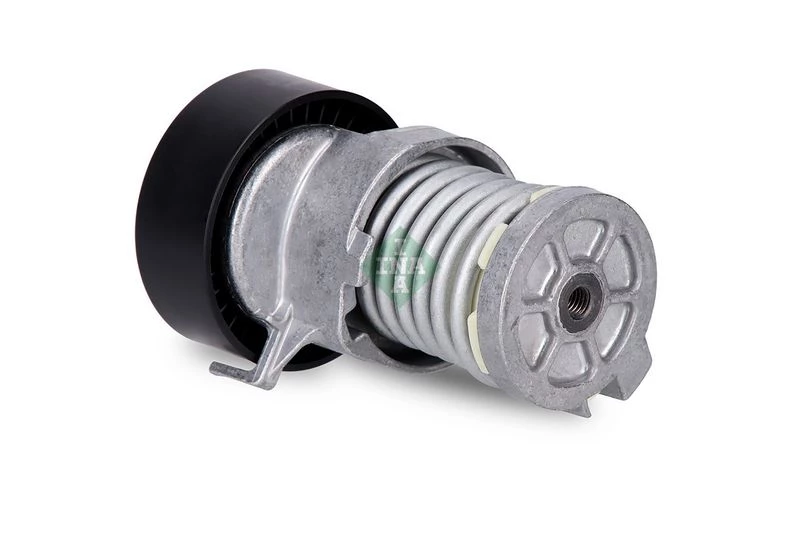

    INA V‑ribbed belt tensioner main view

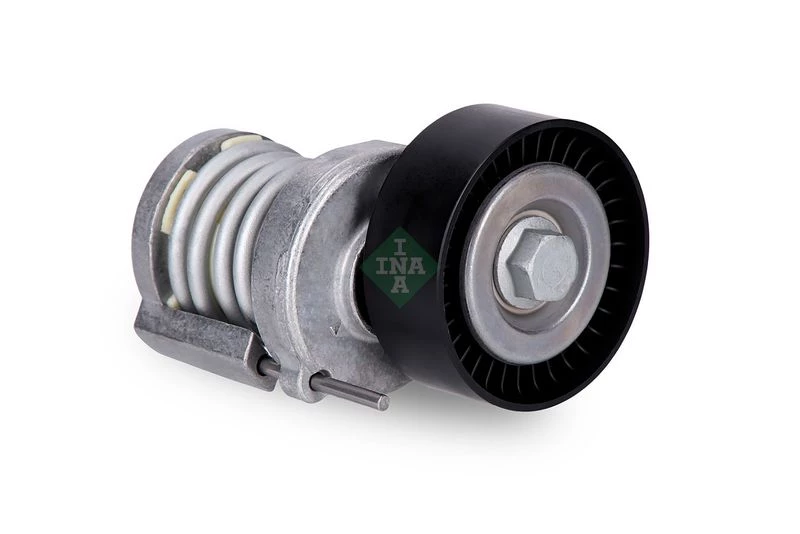

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Usage numbers
    AIC 51090
    AIC 57409
    AUTEX 601027
    BOSCH 1987945800
    BOSCH 1987945800000
    BREDA LORETT TOA3165
    CONTINENTAL CTAM V85548
    DAYCO APV2306
    DAYCO DYV606
    FEBI BILSTEIN 14730
    GATES 7808-21114
    GATES 780821114
    GATES T38214
    GMB GAT21190
    GMB GTA0410
    HK A022
    HK A022-U
    HK A022U
    IPD 10-0022
    IPD 100022
    LEMFÖRDER 2574401
    MEYLE 100 020 0001
    MEYLE 1000200001
    QUINTON HAZELL QTA895
    QUINTON HAZELL QTT895
    RUVILLE 55475
    SCHAEFFLER GRUPPE 534 0123 20
    SCHAEFFLER GRUPPE 534012320
    Schaeffler INA F-235786.01
    Schaeffler INA F23578601
    SKF VKM 31015
    SKF VKM 31015L
    SKF VKM31015
    SKF VKM31015L
    SNR GA357.10
    SNR GA35710
    SPIDAN 0.066475
    SPIDAN 0066475
    SWAG 30 03 0089
    SWAG 30030089
    TOPRAN 108 221
    TOPRAN 108221
    TRIPLE FIVE 0211-07-05475P
    TRIPLE FIVE 02110705475P
    TRIPLE FIVE 03.366
    TRIPLE FIVE 03366
    TRIPLE FIVE 323 1096
    TRIPLE FIVE 3231096
    TRIPLE FIVE 3366
    TRIPLE FIVE 950436
    TRIPLE FIVE 950452
    TRIPLE FIVE MBI-26620
    TRIPLE FIVE MBI26620
    TRIPLE FIVE PBT8669
    TRIPLE FIVE R4103
    TRIPLE FIVE RKT1372
    TRIPLE FIVE Y1122
    TRUCKTEC AUTOMOTIVE 07.19.117
    TRUCKTEC AUTOMOTIVE 0719117
    VAICO V10-0550
    VAICO V100550
    VAICO V101639
    WILMINK GROUP WG1054436
