    Schaeffler INA

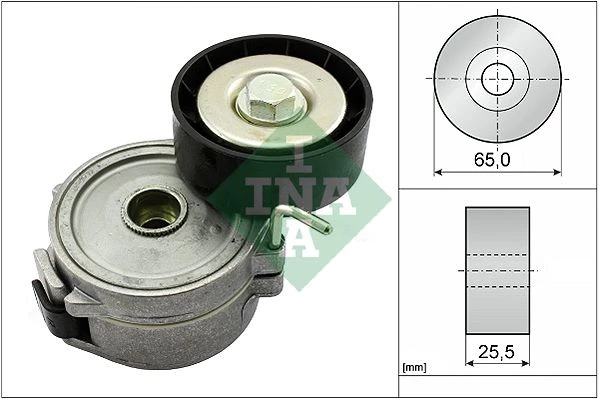

    Outer diameter (mm) 65
    Width (mm) 25.5
    Svhc no svhc present!
    Product number: 534 0068 10

    Ina Belt Tensioner V-ribbed Belt For Citroën Fiat Ford Ford Australia Ford Usa J

    Price excl. vat.
    £ 37,50

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

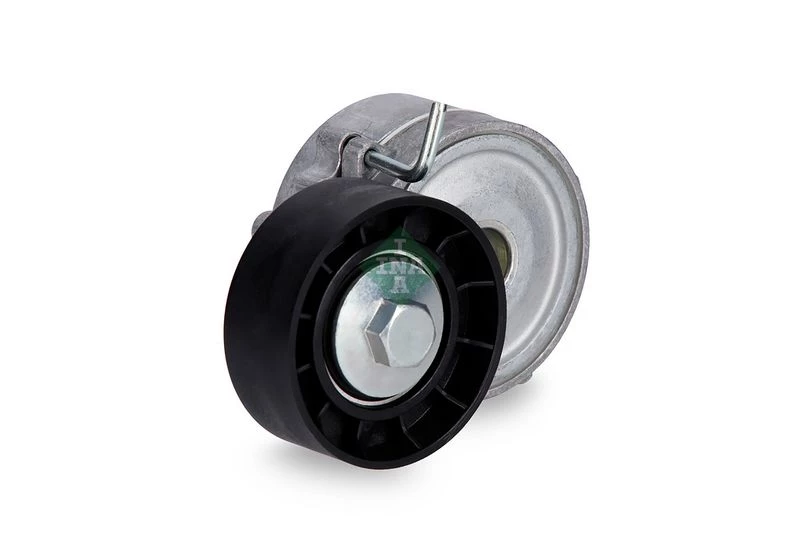

    INA V‑ribbed belt tensioner main view

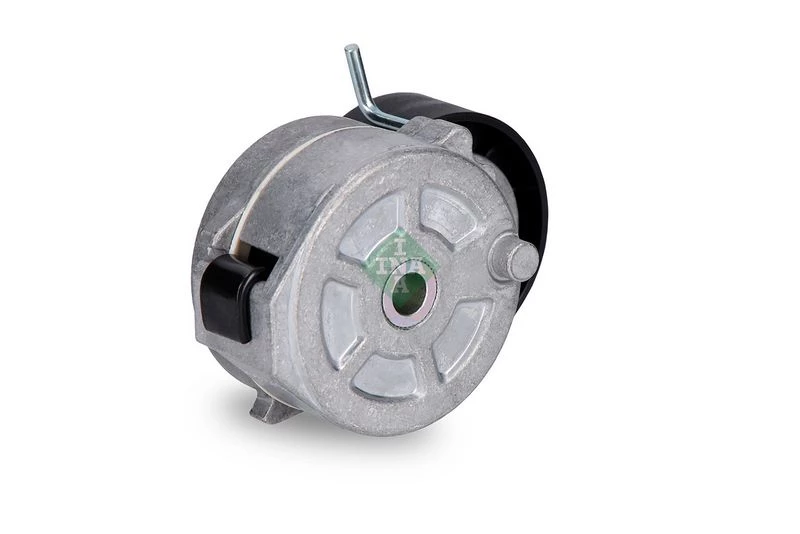

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Manufacturer Productnumber
    citroËn 16 114 249 80 , 1611424980
    citroËn 16 138 407 80 , 1613840780
    citroËn 1611424980
    citroËn 1613840780
    citroËn 5751.F5 , 5751F5
    citroËn 5751.G0 , 5751G0
    citroËn 5751F5
    citroËn 5751G0
    fiat 9653197280
    ford 1440933
    ford 1477061
    ford 1696474
    ford 1870358
    ford 1881236
    ford 7G9Q-6A228-AA , 7G9Q6A228AA
    ford 7G9Q-6A228-AB , 7G9Q6A228AB
    ford 7G9Q6A228AA
    ford 7G9Q6A228AB
    ford AG9Q-6A228-BA , AG9Q6A228BA
    ford AG9Q6A228BA
    ford F1GQ-6A228-AA , F1GQ6A228AA
    ford F1GQ6A228AA
    ford FS7Q-6A228-AA , FS7Q6A228AA
    ford FS7Q6A228AA
    jaguar C2 Z16 647 , C2Z16647
    jaguar C2Z16647
    mitsubishi 1345A034
    peugeot 16 114 249 80 , 1611424980
    peugeot 16 138 407 80 , 1613840780
    peugeot 1611424980
    peugeot 1613840780
    peugeot 5751.F5 , 5751F5
    peugeot 5751.G0 , 5751G0
    peugeot 5751F5
    peugeot 5751G0
    rover LR0 03651 , LR003651
    rover LR003651
    volvo 31216514
    Usage numbers
    AUTEX 654620
    AUTEX 654754
    BGA DC2324
    BLUE PRINT ADJ1396508
    BREDA LORETT TOA3963
    CONTINENTAL CTAM V85916
    DAYCO APV2424
    DAYCO APV2464
    FEBI BILSTEIN 30128
    FEBI BILSTEIN 36859
    GATES 7808-21524
    GATES 7808-21611
    GATES 780821524
    GATES 780821611
    GATES T39124
    GATES T39211
    HEPU 15-3749
    HEPU 153749
    HERTH+BUSS JAKOPARTS J1145091
    HUTCHINSON T0623
    IPD 15-3615
    IPD 153615
    LUCAS ELECTRICAL LA0530
    OPTIMAL 0-N2042
    OPTIMAL 0-N2116
    OPTIMAL 0N2042
    OPTIMAL 0N2116
    RUVILLE 55998
    Saleri SIL T4986
    SCHAEFFLER GRUPPE 534 0068 10
    SCHAEFFLER GRUPPE 534006810
    SKF VKM 33133
    SKF VKM33133
    SKF VKM33406
    SWAG 55 93 0128
    SWAG 55930128
    TRISCAN 8641 281029
    TRISCAN 8641281029
    WILMINK GROUP WG1253315
    WILMINK GROUP WG1430612
    WILMINK GROUP WG1907466
    WILMINK GROUP WG2004615
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    citroËn citroËn
    fiat fiat
    ford ford
    ford usa ford usa
    jaguar jaguar
    lancia lancia
    land rover land rover
    mitsubishi mitsubishi
    peugeot peugeot
    volvo volvo

    FAQ


    You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.


    Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.


    Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.


    Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.


    Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
    Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.


    The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
