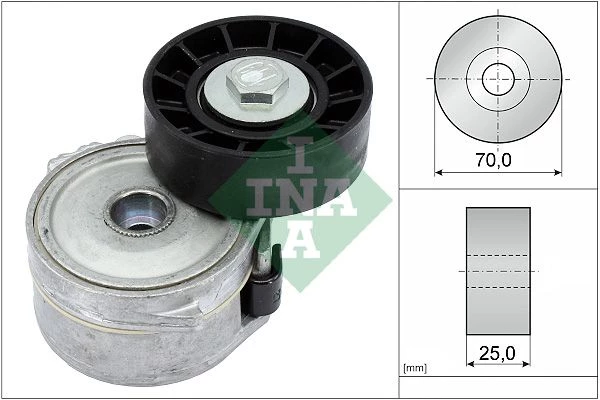

Outer diameter (mm)	70
Width (mm)	25
Svhc	no svhc present!

Product number: 534 0334 10

Ina Belt Tensioner V-ribbed Belt For Citroën Fiat Ford Ford Australia Lancia Peu

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 37,50

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

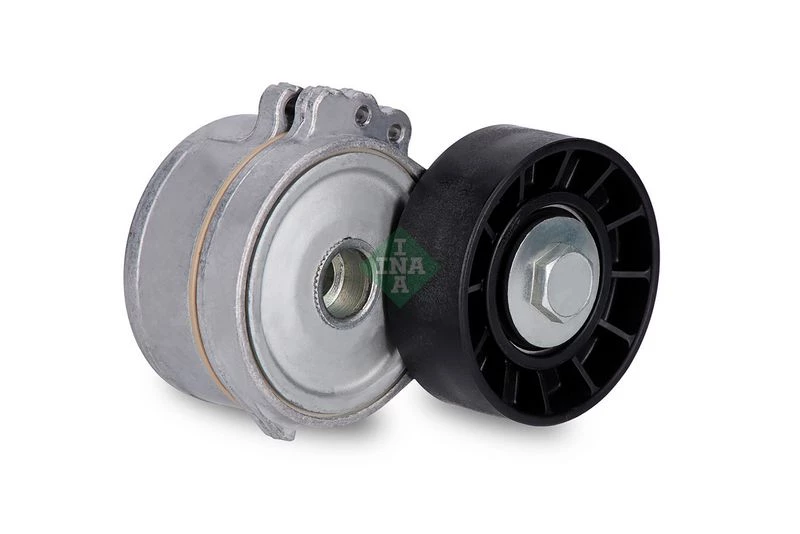

INA V‑ribbed belt tensioner 360 angle view

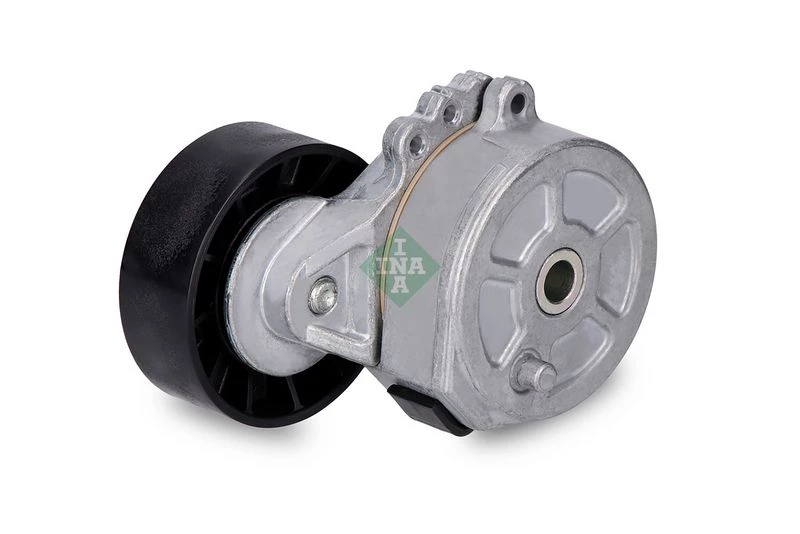

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
citroËn	16 114 243 80 , 1611424380
citroËn	1611424380
citroËn	5751.A7 , 5751A7
citroËn	5751.F6 , 5751F6
citroËn	5751A7
citroËn	5751F6
fiat	9650542480
fiat	9660484680
ford	1253954
ford	1310771
ford	1318336
ford	4M 5Q 6A228 8FA , 4M5Q6A2288FA
ford	4M 5Q 6A228 8FC , 4M5Q6A2288FC
ford	4M 5Q 6A228 8FD , 4M5Q6A2288FD
ford	4M5Q6A2288FA
ford	4M5Q6A2288FC
ford	4M5Q6A2288FD
peugeot	16 114 243 80 , 1611424380
peugeot	1611424380
peugeot	5751.A7 , 5751A7
peugeot	5751.F6 , 5751F6
peugeot	5751A7
peugeot	5751F6
volvo	30650927
volvo	30684427

Usage numbers
BREDA LORETT CR3306
BREDA LORETT TOA3933
CONTINENTAL CTAM V85573
CONTINENTAL CTAM V85591
DAYCO APV1114
FEBI BILSTEIN 37266
GATES 7808-21137
GATES 7808-21377
GATES 780821137
GATES 780821377
GATES T38237
GATES T38477
HUTCHINSON T0306
QUINTON HAZELL QTA1210
RUVILLE 56651
SCHAEFFLER GRUPPE 534 0334 10
SCHAEFFLER GRUPPE 534033410
SKF VKM 33320
SKF VKM33320
SKF VKM33370
SNR GA359.13
SNR GA35913
TRIPLE FIVE 950031

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
ford
lancia
peugeot
volvo
