Outer diameter (mm)	70
Width (mm)	24.8
Svhc	no svhc present!

Product number: 534 0110 20

Ina Belt Tensioner V-ribbed Belt For Citroën Fiat Lancia Peugeot Suzuki 206 306

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 30,24

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

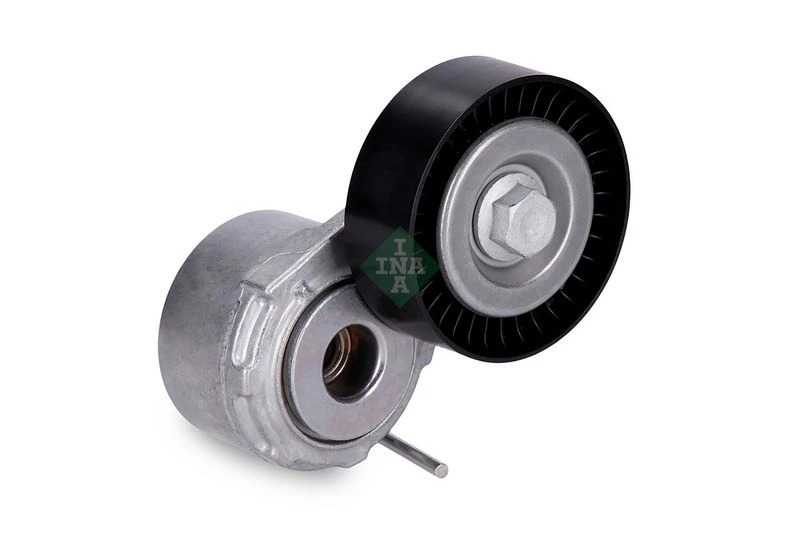

INA V‑ribbed belt tensioner 360 angle view

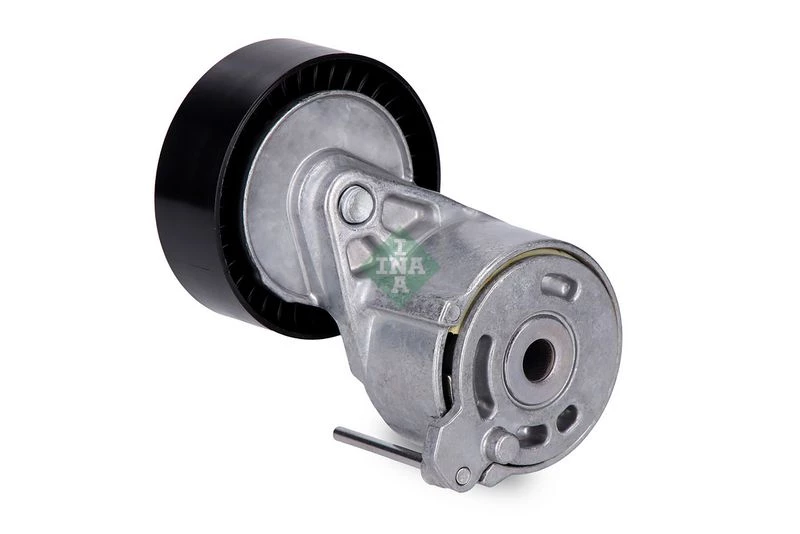

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
citroËn	16 138 399 80 , 1613839980
citroËn	1613839980
citroËn	5751.55 , 575155
citroËn	575155
citroËn	96 344 657 , 96344657
citroËn	96 363 551 , 96363551
citroËn	96344657
citroËn	96363551
fiat	9634465780
fiat	9636355180
fiat	9653522380
iveco	9634465780
iveco	9636355180
peugeot	16 138 399 80 , 1613839980
peugeot	1613839980
peugeot	5751.55 , 575155
peugeot	575155
peugeot	96 344 657 , 96344657
peugeot	96 363 551 , 96363551
peugeot	96344657
peugeot	96363551
suzuki	49160-67G00 , 4916067G00
suzuki	4916067G00

Usage numbers
AJUSA 5751.55
AJUSA 575155
AJUSA 96344657
AJUSA 96363551
BOSCH 1 987 945 838
BOSCH 1987945838
BREDA LORETT CR3306
CONTINENTAL CTAM V85573
DAYCO APV1028
FEBI BILSTEIN 19119
GATES 7808-21292
GATES 780821292
GATES T38392
GMB GAT20770
HUTCHINSON T0218
IPD 10-0574
IPD 100574
LEMFÖRDER 2574101
Metalcaucho 04807
OPTIMAL 0-N1493
OPTIMAL 0-N1493S
OPTIMAL 0N1493
OPTIMAL 0N1493S
QUINTON HAZELL QTA1135
RUVILLE 55940
SCHAEFFLER GRUPPE 534 0110 20
SCHAEFFLER GRUPPE 534011020
SKF VKM 33033
SKF VKM33033
SNR GA359.85
SNR GA35985
SWAG 62 91 9119
SWAG 62919119
TOPRAN 722 412
TOPRAN 722412
TRIPLE FIVE 0211-07-05940P
TRIPLE FIVE 02110705940P
TRIPLE FIVE 340 6515
TRIPLE FIVE 3406515
TRIPLE FIVE 380258
TRIPLE FIVE 380336
TRIPLE FIVE 950005
TRIPLE FIVE MBI-26780
TRIPLE FIVE MBI26780
TRIPLE FIVE RKT1974
TRIPLE FIVE RKT2052
TRIPLE FIVE TP22480
TRIPLE FIVE Y1508
VAICO V42-0203
VAICO V420203
