    Schaeffler INA

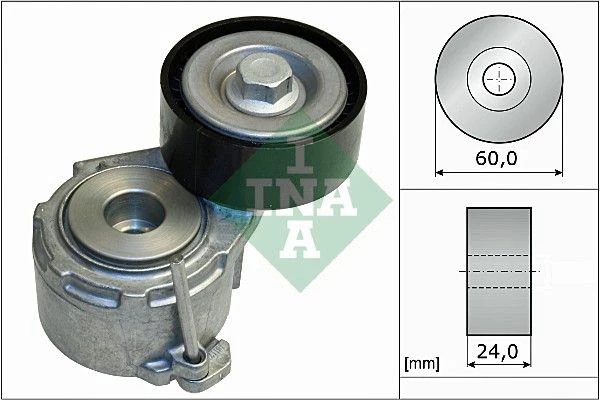

    Outer diameter (mm) 60
    Width (mm) 24
    Svhc no svhc present!
    Product number: 534 0111 20

    Ina Belt Tensioner V-ribbed Belt For Citroën Fiat Peugeot Suzuki 206 206 Van 306

    Price excl. vat.
    £ 22,98

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

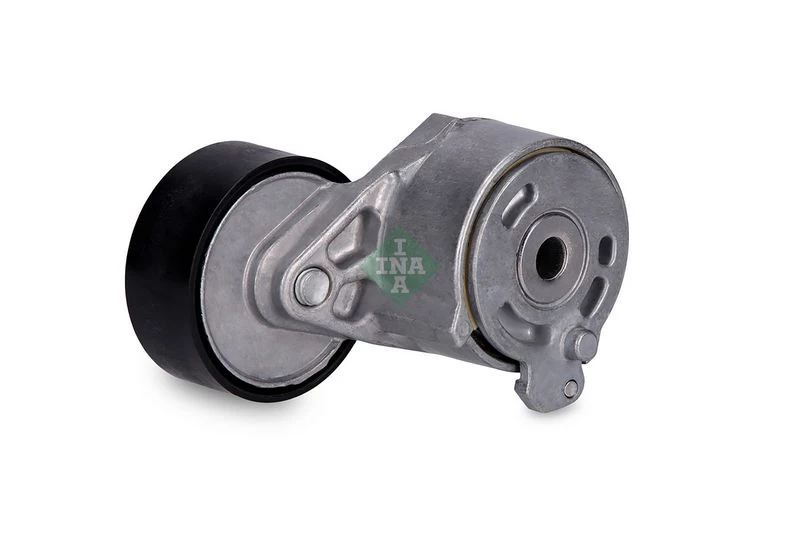

    INA V‑ribbed belt tensioner main view

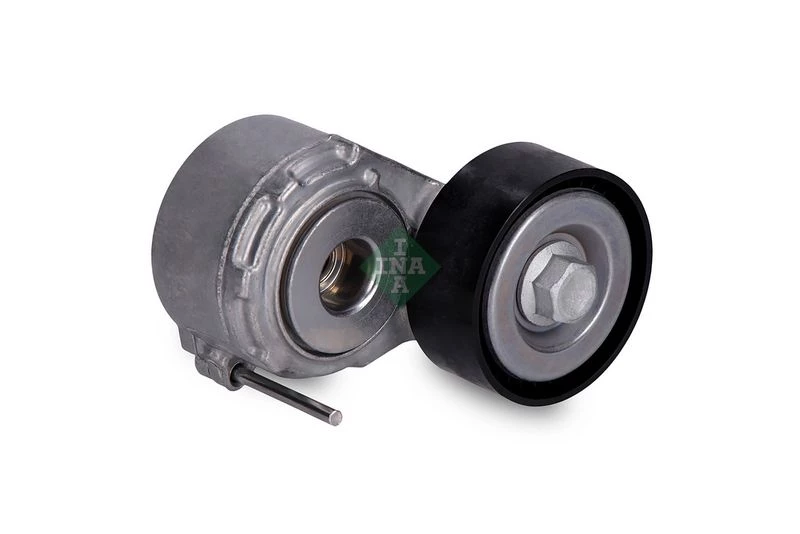

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Manufacturer Productnumber
    citroËn 16 138 400 80 , 1613840080
    citroËn 1613840080
    citroËn 5751.74 , 575174
    citroËn 575174
    citroËn 96 367 827 , 96367827
    citroËn 96367827
    fiat 9636782780
    fiat 9653522780
    peugeot 16 138 400 80 , 1613840080
    peugeot 1613840080
    peugeot 5751.74 , 575174
    peugeot 575174
    peugeot 96 367 827 , 96367827
    peugeot 96367827
    Usage numbers
    AJUSA 5751.74
    AJUSA 575174
    AJUSA 96367827
    BREDA LORETT TOA3308
    CONTINENTAL CTAM V85555
    DAYCO APV1030
    FEBI BILSTEIN 19482
    GATES 7808-21136
    GATES 780821136
    GATES T38236
    GMB GAT21210
    GMB GTA0010
    HK A575
    IPD 10-0575
    IPD 100575
    Metalcaucho 05043
    OPTIMAL 0-N1471
    OPTIMAL 0N1471
    QUINTON HAZELL QTA1137
    RUVILLE 55942
    SCHAEFFLER GRUPPE 534 0111 20
    SCHAEFFLER GRUPPE 534011120
    Schaeffler INA F-236668
    Schaeffler INA F236668
    SKF VKM 33032
    SKF VKM33032
    SNR GA359.98
    SNR GA35998
    TOPRAN 722 414
    TOPRAN 722414
    TRIPLE FIVE 0211-07-05942P
    TRIPLE FIVE 02110705942P
    TRIPLE FIVE 340 6522
    TRIPLE FIVE 3406522
    TRIPLE FIVE 380338
    TRIPLE FIVE 950006
    TRIPLE FIVE RKT2054
    TRIPLE FIVE TP22484
    TRIPLE FIVE Y1510
    VAICO V22-0226
    VAICO V220226
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    citroËn citroËn
    fiat fiat
    peugeot peugeot
    suzuki suzuki
