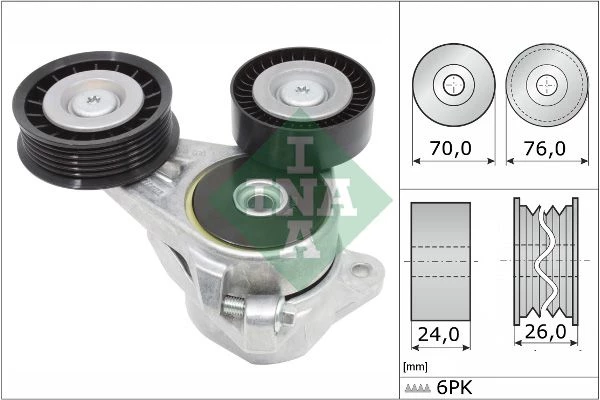

Outer diameter (mm)	70
Width (mm)	24
Number of grooves	6
Svhc	no svhc present!

Product number: 534 0309 10

Ina Belt Tensioner V-ribbed Belt For Ford C-max Focus Focus C-max

In stock

Shipping method	Delivery time	Stock
Shipping	13-8-2025	3

Price excl. vat.

£ 41,13

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

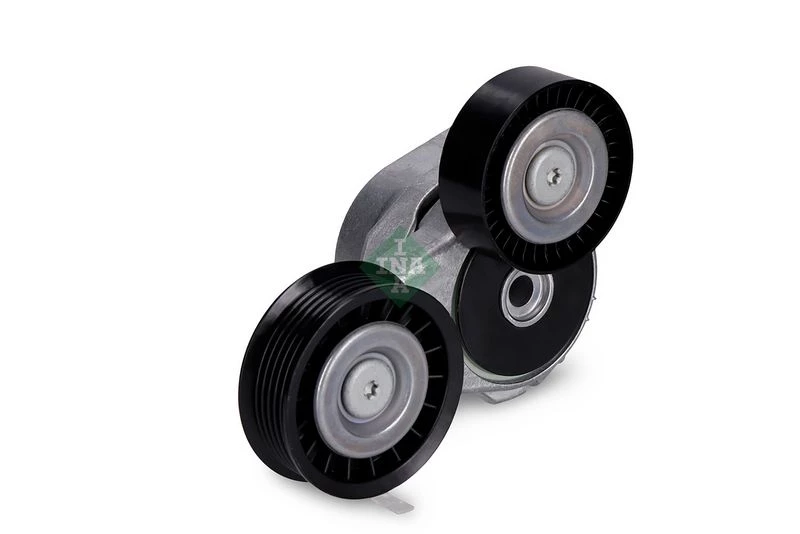

INA V‑ribbed belt tensioner 360 angle view

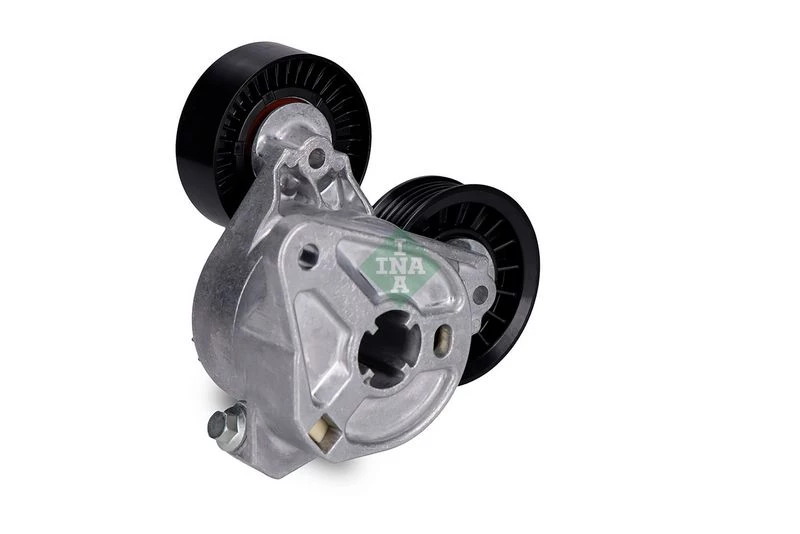

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
ford	1367254
ford	4M5Q-6A228-ED , 4M5Q6A228ED
ford	4M5Q6A228ED

Usage numbers
AUTEX 654573
BGA DC2322
BREDA LORETT TOA3969
DAYCO APV2775
FEBI BILSTEIN 38182
GATES 7808-21424
GATES 780821424
GATES T39024
GMB GAT33210
IPD 15-3568
IPD 153568
LUCAS ELECTRICAL LA0423
OPTIMAL 0-N1709
OPTIMAL 0N1709
QUINTON HAZELL QTA1462
RUVILLE 55274
SCHAEFFLER GRUPPE 534 0309 10
SCHAEFFLER GRUPPE 534030910
SKF VKM 34110
SKF VKM34110
SWAG 50 93 8182
SWAG 50938182
TRIPLE FIVE 03.80971
TRIPLE FIVE 0380971
TRIPLE FIVE 950036
TRIPLE FIVE 950036R
TRIPLE FIVE GA352.64
TRIPLE FIVE GA35264
TRISCAN 8641 163016
TRISCAN 8641163016
WILMINK GROUP WG1253483
WILMINK GROUP WG1430420
WILMINK GROUP WG1907464
WILMINK GROUP WG2004846

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
