    Schaeffler INA

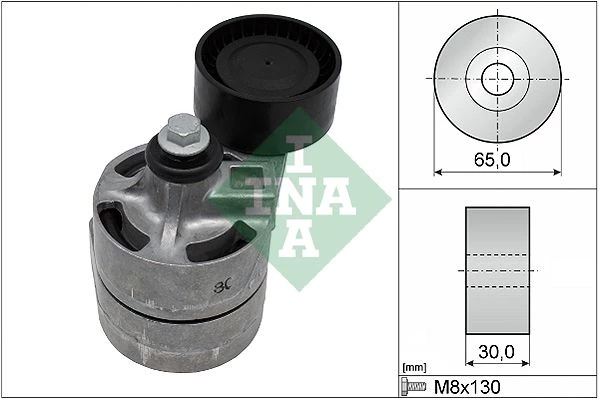

    Outer diameter (mm) 65
    Width (mm) 30
    Svhc no svhc present!
    Product number: 534 0434 10

    Ina Belt Tensioner V-ribbed Belt For Ford Ford (Jmc) Ford Australia Jmc S350 Tra

    Price excl. vat.
    £ 60,49

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

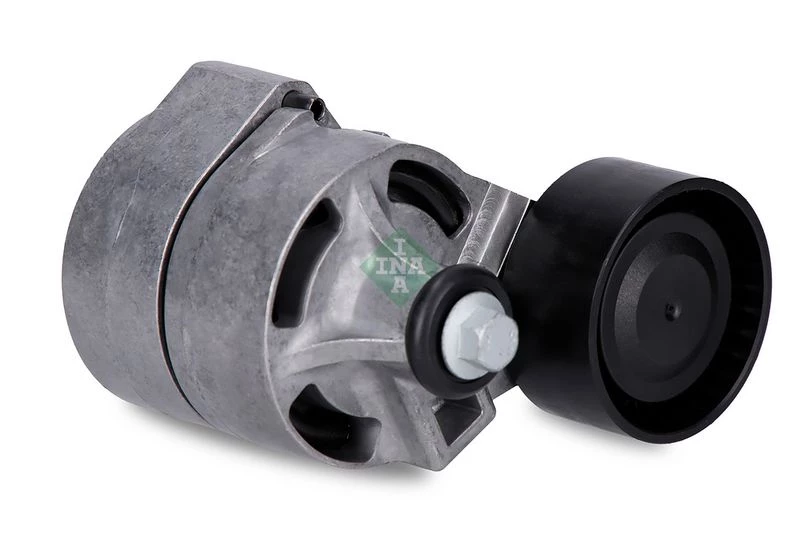

    INA V‑ribbed belt tensioner main view
    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Manufacturer Productnumber
    ford 1385379
    ford 1445915
    ford 6C1Q-6A228-BB , 6C1Q6A228BB
    ford 6C1Q-6A228-BC , 6C1Q6A228BC
    ford 6C1Q6A228BB
    ford 6C1Q6A228BC
    Usage numbers
    AUTEX 654844
    BGA DC2323
    BREDA LORETT TOA4342
    DAYCO APV2836
    FAI AutoParts T1095
    FEBI BILSTEIN 37255
    FLENNOR FS99749
    GATES 7808-21508
    GATES 780821508
    GATES T39108
    GK 654844
    HEPU 15-3839
    HEPU 153839
    HUTCHINSON T0080
    IPD 15-3839
    IPD 153839
    OPTIMAL 0-N2038
    OPTIMAL 0-N2038S
    OPTIMAL 0N2038
    OPTIMAL 0N2038S
    QUINTON HAZELL QTA1612
    RUVILLE 57115
    SCHAEFFLER GRUPPE 534 0434 10
    SCHAEFFLER GRUPPE 534043410
    SKF VKM 34702
    SKF VKM34702
    SNR GA352.71
    SNR GA35271
    SWAG 50 93 7255
    SWAG 50937255
    TRIPLE FIVE 03.81486
    TRIPLE FIVE 0381486
    TRIPLE FIVE 101938
    TRIPLE FIVE 101938-E
    TRIPLE FIVE 101938E
    TRISCAN 8641 163018
    TRISCAN 8641163018
    VAICO V25-1171
    VAICO V251171
    WILMINK GROUP WG1253548
    WILMINK GROUP WG1430416
    WILMINK GROUP WG1907465
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
