    Schaeffler INA

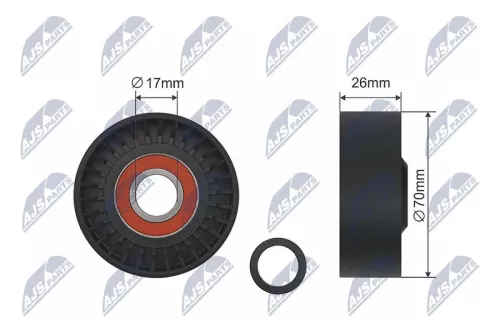

    Outer diameter (mm) 70
    Width (mm) 26
    Svhc no svhc present!
    Product number: 534 0296 10

    Ina Belt Tensioner V-ribbed Belt For Seat Skoda Vw Ameo Cordoba Fabia Fox Ibiza

    Price excl. vat.
    £ 32,66

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

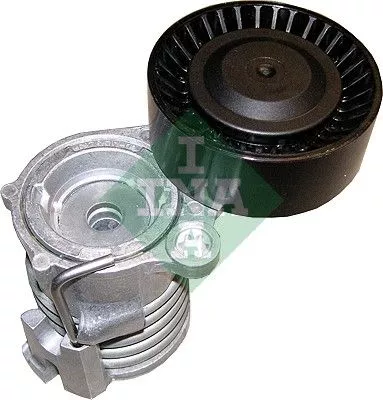

    INA V‑ribbed belt tensioner main view

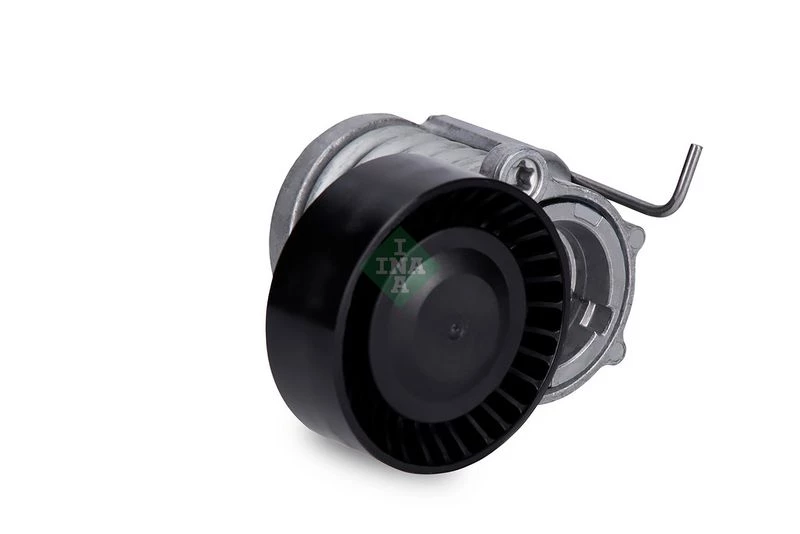

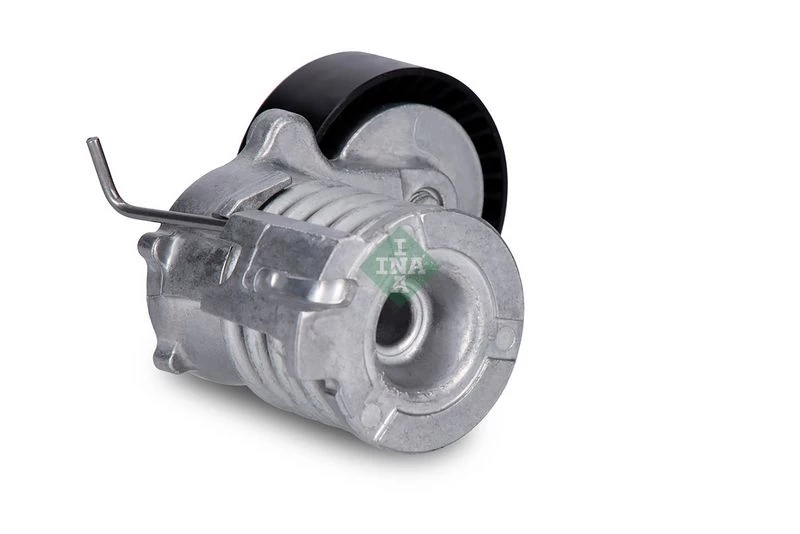

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Usage numbers
    AUTEX 654501
    BREDA LORETT TOA3824
    CONTINENTAL CTAM V85603
    DAYCO APV2765
    FEBI BILSTEIN 30897
    GATES 7808-21421
    GATES 7808-21515
    GATES 780821421
    GATES 780821515
    GATES T39021
    GATES T39115
    GMB GAT21740
    IPD 15-3496
    IPD 153496
    OPTIMAL 0-N1908
    OPTIMAL 0-N1908S
    OPTIMAL 0N1908
    OPTIMAL 0N1908S
    RUVILLE 56318
    SCHAEFFLER GRUPPE 534 0296 10
    SCHAEFFLER GRUPPE 534029610
    Schaeffler INA F-233597.08
    Schaeffler INA F-233597.09
    Schaeffler INA F-238481
    Schaeffler INA F-238481.08
    Schaeffler INA F23359708
    Schaeffler INA F23359709
    Schaeffler INA F238481
    Schaeffler INA F23848108
    SKF VKM31220
    SNR GA357.31
    SNR GA35731
    SWAG 30 93 0897
    SWAG 30930897
    TOPRAN 115 462
    TOPRAN 115462
    TRIPLE FIVE 03.80914
    TRIPLE FIVE 0380914
    TRIPLE FIVE 950363
    VAICO V10-3423
    VAICO V103423
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    seat seat
    skoda skoda
    vw vw
