Outer diameter (mm)	145
Width (mm)	46
Vibration	with vibration damper
Number of grooves	7
Svhc	no svhc present!

Product number: 544 0017 10

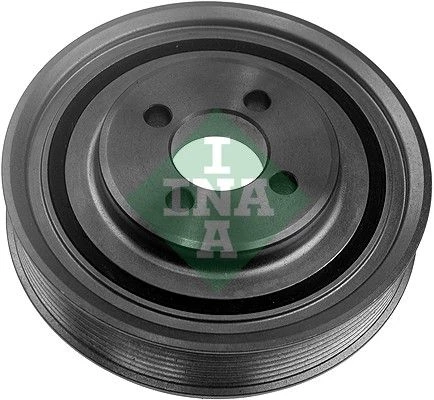

Ina Crankshaft Pulley for Fiat Ducato

Out of stock

Price incl. vat.

£ 39,92

Notify me when back in stock

Description

INA Engine Drive Components

Crankshaft Pulley

The INA Crankshaft Pulley, also known as a harmonic balancer or vibration damper, transfers rotational power from the crankshaft to the auxiliary belt system while reducing engine vibration. Built to OE specifications, it ensures smooth running, protects belt drive components, and helps prevent premature wear of the crankshaft and bearings.

OE-grade damping Precision balance Durable construction

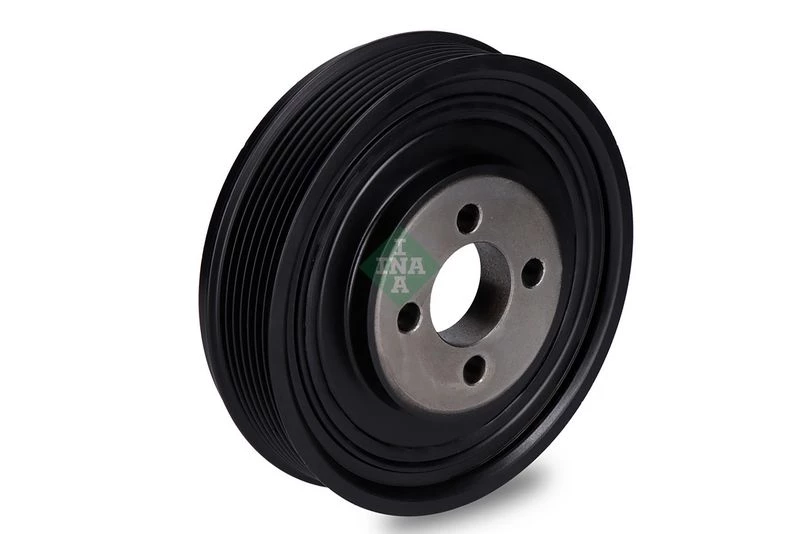

INA Crankshaft Pulley alternative view 1

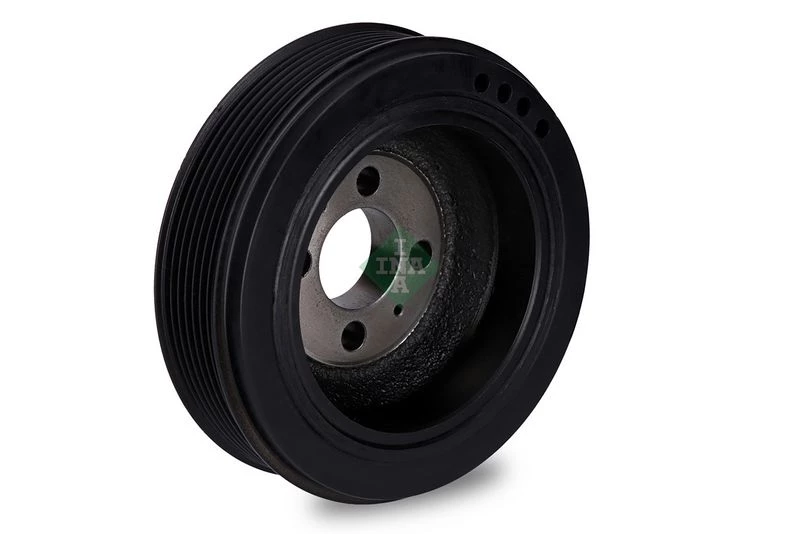

INA Crankshaft Pulley alternative view 2

Key Features

Integrated vibration damping: Reduces torsional vibrations from the crankshaft for smoother engine operation.
Precision engineered: Balanced to exact tolerances for quiet, stable performance.
OE materials: Resistant to heat, oil, and environmental exposure.

When to Replace

Visible cracks or separation of the rubber damping element.
Unusual vibration or noise from the front of the engine.
Belt misalignment or wobble at the pulley.
During major belt drive service to prevent future failure.

Tip: Always replace the crankshaft pulley bolt and follow manufacturer torque/angle tightening procedures.

How to Fit (Universal Guide)

Preparation: Engine cold, disconnect battery. Remove the auxiliary belt.
Secure crankshaft: Use the proper locking tool to prevent engine rotation.
Remove pulley bolt: Loosen using correct socket/impact tool if specified.
Remove old pulley: Slide off carefully; inspect crank nose and keyway.
Install new INA pulley: Position correctly, fit new bolt, torque and angle tighten to spec.
Refit belt: Ensure correct routing and tension. Remove crank lock.
Test run: Check for noise, vibration, and correct belt tracking.

Always use manufacturer-specified tools and procedures for safe installation.

Manufacturer	Productnumber
fiat	504017415
fiat	504078435

Usage numbers
DAYCO DPV1008
FEBI BILSTEIN 30171
GATES 7845-10082
GATES 784510082
GATES TVD1078
RUVILLE 515807
SCHAEFFLER GRUPPE 544 0017 10
SCHAEFFLER GRUPPE 544001710
SKF VKM 93216
SKF VKM93216
VAICO V24-0668
VAICO V240668

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
fiat
