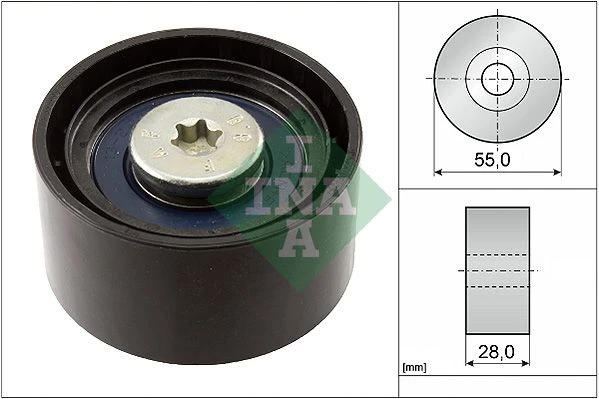

Ø (mm)	55
Width (mm)	28
Svhc	no svhc present!
Width	5.5 cm
Length	5.5 cm

Product number: 532 0556 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Bmw 1 3 5 7 X1 X3 X5 X6

In stock

Shipping method	Delivery time	Stock
Shipping	14-8-2025	3

Price excl. vat.

£ 19,35

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

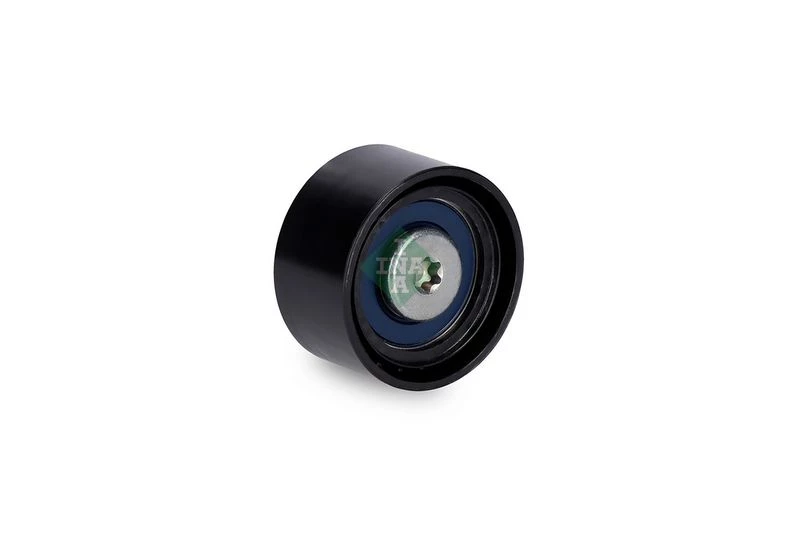

INA Deflection Guide Pulley alternative view 1

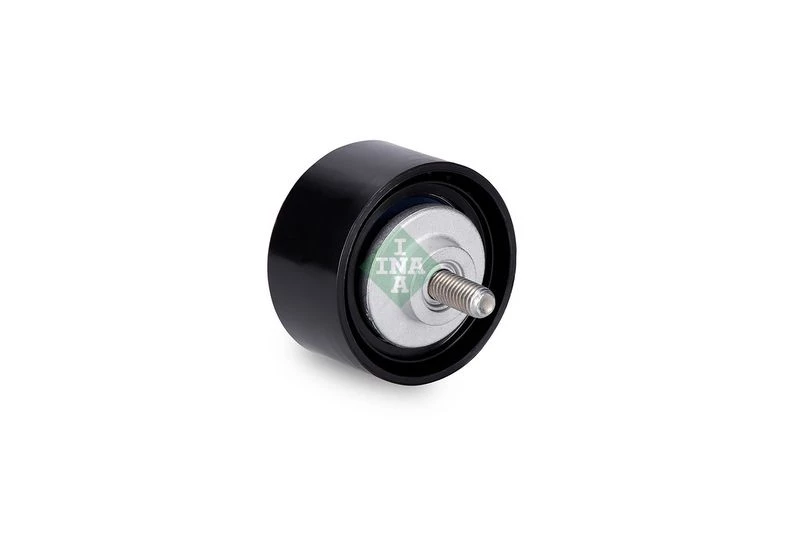

INA Deflection Guide Pulley alternative view 2

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
bmw	11 28 7 800 562 , 11287800562
bmw	11287800562
bmw	7 800 562 , 7800562
bmw	7800562
mini	11 28 7 800 562 , 11287800562
mini	11287800562
mini	7 800 562 , 7800562
mini	7800562

Usage numbers
AUTEX 654548
BREDA LORETT TOA3882
DAYCO APV2781
FEBI BILSTEIN 30411
FEBI BILSTEIN 30441
GATES 7803-21473
GATES 780321473
GATES T36373
GK 654548
GMB GTC1440
IPD 15-3543
IPD 153543
MEYLE 314 009 0007
MEYLE 3140090007
OPTIMAL 0-N1950
OPTIMAL 0N1950
RUVILLE 55096
SCHAEFFLER GRUPPE 532 0556 10
SCHAEFFLER GRUPPE 532055610
Schaeffler INA F-555995.01
Schaeffler INA F-570038
Schaeffler INA F55599501
Schaeffler INA F570038
SKF VKM 38336
SKF VKM38336
SNR GA350.80
SNR GA35080
SWAG 20 93 0441
SWAG 20930441
TRIPLE FIVE 03.81311
TRIPLE FIVE 0381311
TRIPLE FIVE GA350.80
TRIPLE FIVE GA35080
TRISCAN 8641 112018
TRISCAN 8641112018
VAICO V20-3223
VAICO V203223

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
