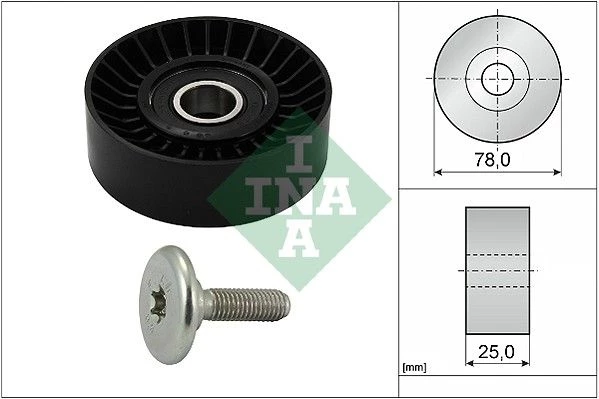

Ø (mm)	78
Width (mm)	25
Svhc	no svhc present!
Width	7.8 cm
Length	7.8 cm

Product number: 532 0439 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Citroën Citroën (Df-psa) Fiat Lanc

In stock

Shipping method	Delivery time	Stock
Shipping	13-8-2025	3

Price excl. vat.

£ 14,51

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

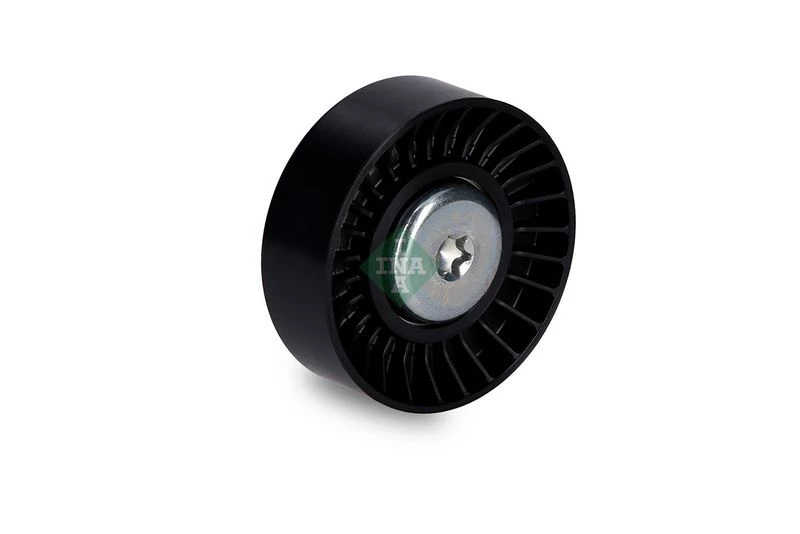

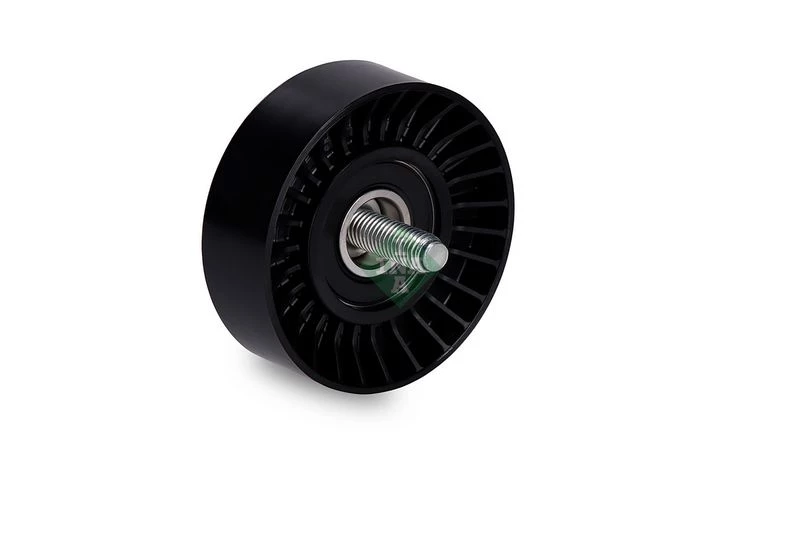

INA Deflection Guide Pulley alternative view 1

INA Deflection Guide Pulley alternative view 2

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	5751.60 , 575160
citroËn	575160
citroËn	96 366 405 , 96366405
citroËn	96366405
fiat	9636640580
peugeot	5751.60 , 575160
peugeot	575160
peugeot	96 366 405 , 96366405
peugeot	96366405
citroËn (df-psa)	5751 60 , 575160
citroËn (df-psa)	575160
peugeot (df-psa)	5751 60 , 575160
peugeot (df-psa)	575160

Usage numbers
AJUSA 5751.60
AJUSA 575160
AJUSA 96366405
BREDA LORETT POA3412
CONTINENTAL CTAM V85713
DAYCO APV2216
FEBI BILSTEIN 19357
FLENNOR FU22919
GATES 7720-40020-C
GATES 772040020C
GATES 7803-21055
GATES 780321055
GATES T38055
HK U649
IPD 15-0649
IPD 150649
MAPCO 24350
OPTIMAL 0-N1416
OPTIMAL 0N1416
QUINTON HAZELL QTA1031
RUVILLE 55952
SCHAEFFLER GRUPPE 532 0439 10
SCHAEFFLER GRUPPE 532043910
Schaeffler INA F-125051
Schaeffler INA F-573956
Schaeffler INA F125051
Schaeffler INA F573956
SKF VKM 33020
SKF VKM33020
SNR GA359.94
SNR GA35994
SWAG 62 91 9357
SWAG 62919357
TOPRAN 722 427
TOPRAN 722427
TRIPLE FIVE 03.80500
TRIPLE FIVE 0380500
TRIPLE FIVE 340 6728
TRIPLE FIVE 3406728
TRIPLE FIVE PBT8693
TRIPLE FIVE Y1587
TRISCAN 8641 102004
TRISCAN 8641102004
VAICO V24-0143
VAICO V240143

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
lancia
peugeot
