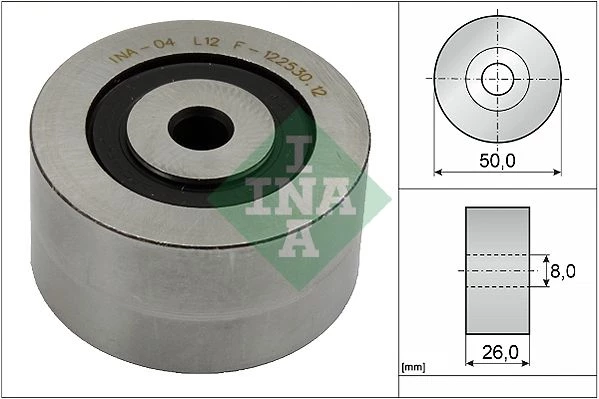

Ø (mm)	50
Width (mm)	26
Svhc	no svhc present!
Width	5 cm
Length	5 cm

Product number: 532 0143 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Citroën Fiat Lancia Peugeot Suzuki

In stock

Shipping method	Delivery time	Stock
Shipping	15-8-2025	3

Price excl. vat.

£ 24,19

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

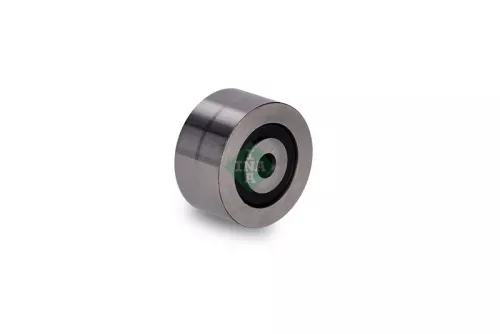

INA Deflection Guide Pulley alternative view 1

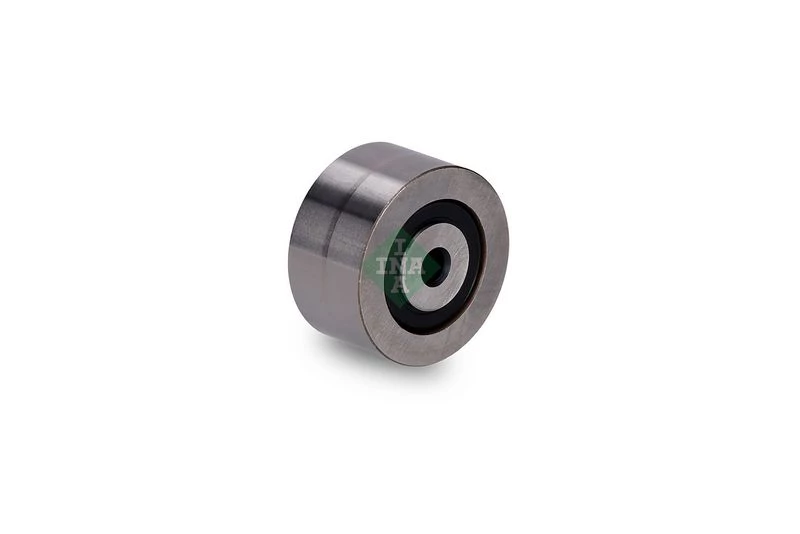

INA Deflection Guide Pulley alternative view 2

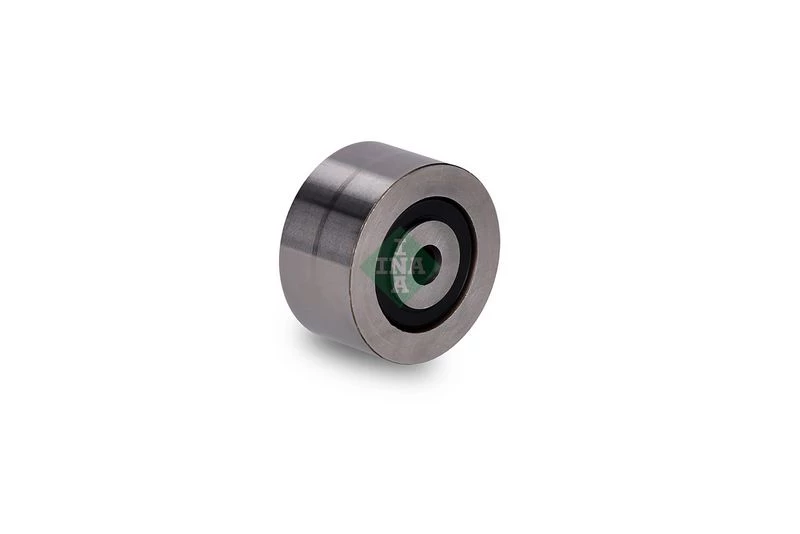

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	16 138 384 80 , 1613838480
citroËn	1613838480
citroËn	5751.57 , 575157
citroËn	5751.96 , 575196
citroËn	575157
citroËn	575196
citroËn	96 333 152 , 96333152
citroËn	96 333 152 80 , 9633315280
citroËn	96 429 657 , 96429657
citroËn	96333152
citroËn	9633315280
citroËn	96429657
fiat	1613838480
fiat	9633315280
fiat	9642965780
peugeot	16 138 384 80 , 1613838480
peugeot	1613838480
peugeot	5751.57 , 575157
peugeot	5751.96 , 575196
peugeot	575157
peugeot	575196
peugeot	96 333 152 , 96333152
peugeot	96 333 152 80 , 9633315280
peugeot	96 429 657 , 96429657
peugeot	96333152
peugeot	9633315280
peugeot	96429657

Usage numbers
AJUSA 5751.57
AJUSA 5751.96
AJUSA 575157
AJUSA 575196
AJUSA 96333152
AJUSA 96429657
CONTINENTAL CTAM V85516
DAYCO APV2128
FEBI BILSTEIN 07089
FEBI BILSTEIN 7089
GATES 7803-21251
GATES 780321251
GATES T36151
HK U297
HUTCHINSON T0022
IPD 15-0297
IPD 150297
Koyo PU255025A
LEMFÖRDER 2576801
MEYLE 11-14 009 0012
MEYLE 11140090012
QUINTON HAZELL QTA1270
QUINTON HAZELL QTA746
QUINTON HAZELL QTT746
RUVILLE 55544
SCHAEFFLER GRUPPE 532 0143 10
SCHAEFFLER GRUPPE 532014310
Schaeffler INA F-122530.07
Schaeffler INA F-122530.12
Schaeffler INA F-122530.7
Schaeffler INA F12253007
Schaeffler INA F12253012
Schaeffler INA F1225307
SKF VKM 33069
SKF VKM33069
SNR GA359.71
SNR GA35971
SPIDAN 0.066544
SPIDAN 0066544
SWAG 60030042
TRIPLE FIVE 0211-06-05544P
TRIPLE FIVE 02110605544P
TRIPLE FIVE 03.524
TRIPLE FIVE 03.641
TRIPLE FIVE 03524
TRIPLE FIVE 03641
TRIPLE FIVE 340 7105
TRIPLE FIVE 3407105
TRIPLE FIVE MBI-23680
TRIPLE FIVE MBI23680
TRIPLE FIVE PBT8479
TRIPLE FIVE RKT1533
TRIPLE FIVE RKT1654
TRIPLE FIVE TP22448
TRIPLE FIVE Y1227

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
lancia
peugeot
suzuki
