Supplementary article/info 2	requires special tools for mounting
For manufacturer number	920916

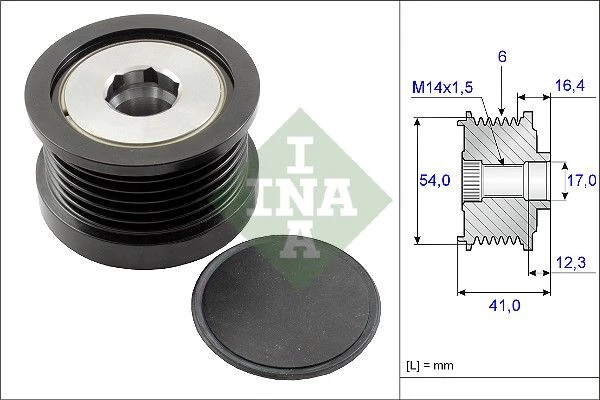

Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	16.4

Product number: 535 0259 10

Ina Overrunning Alternator Clutch Pulley For Alfa Romeo Fiat Ford Jeep Mazda Volvo 3 500l

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	3

Price excl. vat.

£ 60,44

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

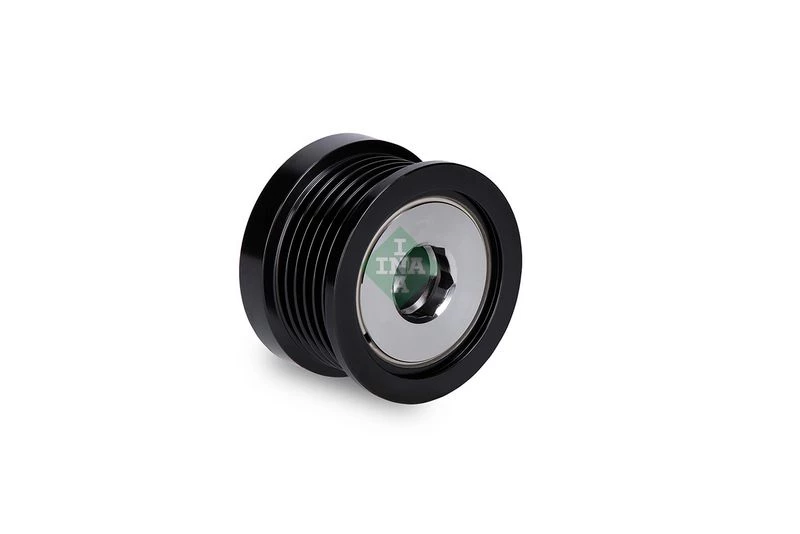

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
chrysler	6 8254 601AA , 68254601AA
chrysler	68254601AA
fiat	51929089
fiat	52067418
fiat	52067422
fiat	52083170
fiat	52083172
fiat	55244937
fiat	56029679AA
fiat	68348758AB
fiat	68457601AA
ford	1704085
ford	1707062
ford	1863383
ford	8M5T-10300-PA , 8M5T10300PA
ford	8M5T-10300-PB , 8M5T10300PB
ford	8M5T-10300-YA , 8M5T10300YA
ford	8M5T-10300-YB , 8M5T10300YB
ford	8M5T10300PA
ford	8M5T10300PB
ford	8M5T10300YA
ford	8M5T10300YB
ford	9M5Q-10A352-AA , 9M5Q10A352AA
ford	9M5Q10A352AA
ford	CA3Q-10A352-AA , CA3Q10A352AA
ford	CA3Q10A352AA
jeep	K56029679AA
jeep	K68254601AA
jeep	K68348758AB
jeep	K68399031AA
jeep	K68457601AA
mazda	Y662-18-300A , Y66218300A
mazda	Y66218300A
volvo	31285593
volvo	31288154
volvo	31288155
volvo	36002577

Usage numbers
AS-PL AFP6044
AUTEX 654919
DENSO 104210-5700
DENSO 104210-5710
DENSO 104210-5711
DENSO 1042105700
DENSO 1042105710
DENSO 1042105711
DENSO 104211-0280
DENSO 104211-1180
DENSO 104211-1270
DENSO 104211-1271
DENSO 104211-7050
DENSO 104211-8320
DENSO 104211-9830
DENSO 1042110280
DENSO 1042111180
DENSO 1042111270
DENSO 1042111271
DENSO 1042117050
DENSO 1042118320
DENSO 1042119830
DENSO 21040-1900
DENSO 21040-2350
DENSO 210401900
DENSO 210402350
FEBI BILSTEIN 10195
FEBI BILSTEIN 101956
GATES OAP7245
OPTIMAL F5-1181
OPTIMAL F51181
RUVILLE 57119
SCHAEFFLER GRUPPE 535 0259 10
SCHAEFFLER GRUPPE 535025910
TRIPLE FIVE 03.81883
TRIPLE FIVE 0381883
TRIPLE FIVE 333433
TRIPLE FIVE 920916
ZEN 5648

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
alfa romeo
fiat
ford
jeep
mazda
volvo
