Supplementary article/info 2	requires special tools for mounting

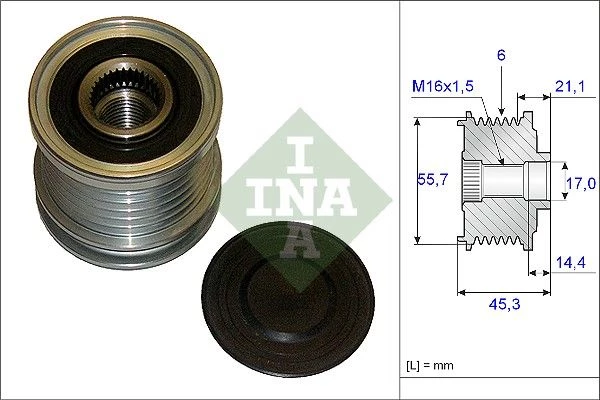

Width (mm)	45.3
Ø1/ Ø2 (mm)	55,7/17,0
For manufacturer number	f-234739.xx
Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	21.1

Product number: 535 0036 10

Ina Overrunning Alternator Clutch Pulley For Audi A4 A6

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	3

Price excl. vat.

£ 42,29

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

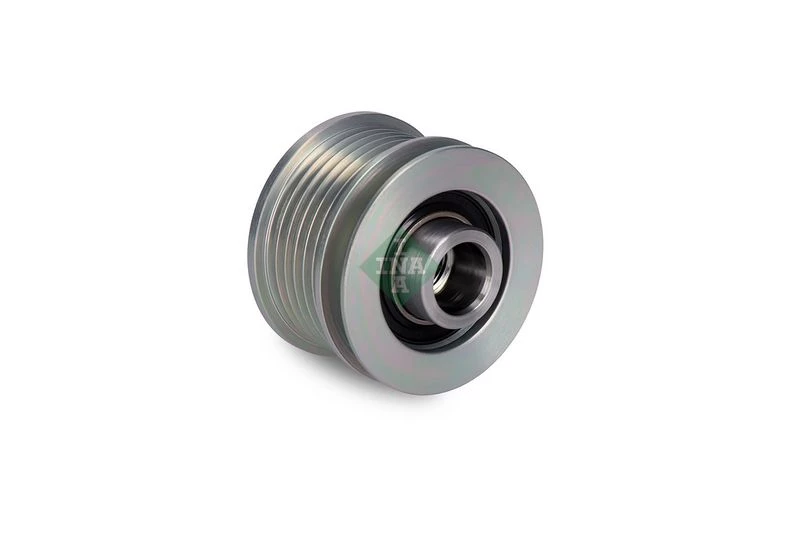

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
audi	06B 903 016 AA , 06B903016AA
audi	06B 903 016 S , 06B903016S
audi	06B 903 019 , 06B903019
audi	06B 903 019 A , 06B903019A
audi	06B 903 119 A , 06B903119A
audi	06B903016AA
audi	06B903016S
audi	06B903019
audi	06B903019A
audi	06B903119A
seat	06B 903 016 AA , 06B903016AA
seat	06B 903 016 S , 06B903016S
seat	06B 903 019 , 06B903019
seat	06B 903 019 A , 06B903019A
seat	06B 903 119 A , 06B903119A
seat	06B903016AA
seat	06B903016S
seat	06B903019
seat	06B903019A
seat	06B903119A
skoda	06B 903 016 AA , 06B903016AA
skoda	06B 903 016 S , 06B903016S
skoda	06B 903 019 , 06B903019
skoda	06B 903 019 A , 06B903019A
skoda	06B 903 119 A , 06B903119A
skoda	06B903016AA
skoda	06B903016S
skoda	06B903019
skoda	06B903019A
skoda	06B903119A
vw	06B 903 016 AA , 06B903016AA
vw	06B 903 016 S , 06B903016S
vw	06B 903 019 , 06B903019
vw	06B 903 019 A , 06B903019A
vw	06B 903 119 A , 06B903119A
vw	06B903016AA
vw	06B903016S
vw	06B903019
vw	06B903019A
vw	06B903119A

Usage numbers
AS-PL AFP3014
BREDA LORETT CR 4040
BREDA LORETT CR4040
DAYCO ALP2395
FEBI BILSTEIN 34548
GATES 7789-10023
GATES 778910023
GATES OAP7087
IPD 15-3284
IPD 153284
LUCAS ELECTRICAL LOPA0046
QUINTON HAZELL 1010102
RUVILLE 55755
SCHAEFFLER GRUPPE 535 0036 10
SCHAEFFLER GRUPPE 535003610
Schaeffler INA F-234739
Schaeffler INA F-234739.03
Schaeffler INA F-234739.04
Schaeffler INA F-234739.05
Schaeffler INA F-234739.3
Schaeffler INA F234739
Schaeffler INA F23473903
Schaeffler INA F23473904
Schaeffler INA F23473905
Schaeffler INA F2347393
SKF VKM 03117
SKF VKM03117
SNR GA754.15
SNR GA75415
TRIPLE FIVE 237320
TRIPLE FIVE 3 3559 1
TRIPLE FIVE 335590
TRIPLE FIVE 335591
TRIPLE FIVE MBI-28870
TRIPLE FIVE MBI28870
TRIPLE FIVE PBT8656
TRIPLE FIVE Y2044
VALEO 2548703A
VALEO 584259
VALEO 588071
VALEO 593494
VALEO SG12B047
ZEN 5632
