Supplementary article/info 2	requires special tools for mounting
For manufacturer number	f-230147.xx
Number of grooves	5
Svhc	no svhc present!
Distance to first groove (mm)	21.5

Product number: 535 0116 10

Ina Overrunning Alternator Clutch Pulley For Nissan Renault Clio Grand Scénic Kangoo Kang

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	3

Price excl. vat.

£ 25,35

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

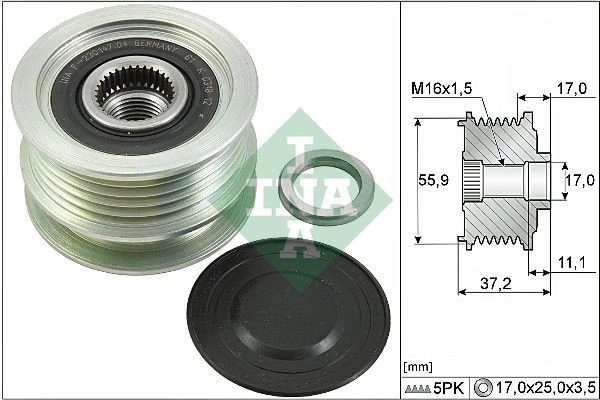

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
dacia	23 10 063 13R , 231006313R
dacia	231006313R
dacia	77 01 474 326 , 7701474326
dacia	77 01 474 416 , 7701474416
dacia	77 01 476 465 , 7701476465
dacia	77 01 476 807 , 7701476807
dacia	77 01 476 808 , 7701476808
dacia	77 01 478 093 , 7701478093
dacia	77 11 135 331 , 7711135331
dacia	77 11 497 095 , 7711497095
dacia	77 11 497 156 , 7711497156
dacia	77 11 497 267 , 7711497267
dacia	7701474326
dacia	7701474416
dacia	7701476465
dacia	7701476807
dacia	7701476808
dacia	7701478093
dacia	7711135331
dacia	7711497095
dacia	7711497156
dacia	7711497267
dacia	82 00 100 907 , 8200100907
dacia	82 00 113 636 , 8200113636
dacia	82 00 122 976 , 8200122976
dacia	82 00 667 603 , 8200667603
dacia	82 01 588 703 , 8201588703
dacia	8200100907
dacia	8200113636
dacia	8200122976
dacia	8200667603
dacia	8201588703
nissan	23100-00Q2H , 2310000Q2H
nissan	23100-00QAB , 2310000QAB
nissan	23100-00QBA , 2310000QBA
nissan	23100-00QBB , 2310000QBB
nissan	23100-00QBJ , 2310000QBJ
nissan	2310000Q2H
nissan	2310000QAB
nissan	2310000QBA
nissan	2310000QBB
nissan	2310000QBJ
nissan	A660C-300BX , A660C300BX
nissan	A660C-300EX , A660C300EX
nissan	A660C300BX
nissan	A660C300EX
renault	23 10 063 13R , 231006313R
renault	231006313R
renault	77 01 474 326 , 7701474326
renault	77 01 474 416 , 7701474416
renault	77 01 476 465 , 7701476465
renault	77 01 476 807 , 7701476807
renault	77 01 476 808 , 7701476808
renault	77 01 478 093 , 7701478093
renault	77 11 135 331 , 7711135331
renault	77 11 497 095 , 7711497095
renault	77 11 497 156 , 7711497156
renault	77 11 497 267 , 7711497267
renault	7701474326
renault	7701474416
renault	7701476465
renault	7701476807
renault	7701476808
renault	7701478093
renault	7711135331
renault	7711497095
renault	7711497156
renault	7711497267
renault	82 00 100 907 , 8200100907
renault	82 00 113 636 , 8200113636
renault	82 00 122 976 , 8200122976
renault	82 00 667 603 , 8200667603
renault	82 01 588 703 , 8201588703
renault	8200100907
renault	8200113636
renault	8200122976
renault	8200667603
renault	8201588703

Usage numbers
BOSCH 0 124 525 028
BOSCH 0 124 525 528
BOSCH 0 986 080 140
BOSCH 0 986 080 290
BOSCH 0124525028
BOSCH 0124525528
BOSCH 0986080140
BOSCH 0986080290
BOSCH 1 987 945 408
BOSCH 1987945408
BREDA LORETT CR 3794
BREDA LORETT CR3794
CONTINENTAL CTAM AP9056
DAYCO ALP2374
FEBI BILSTEIN 26458
FEBI BILSTEIN 30068
GATES 7789-10053
GATES 778910053
GATES OAP7108
HUTCHINSON 7513
IPD 15-3312
IPD 153312
LUCAS ELECTRICAL LOPA0096
RUVILLE 56334
SCHAEFFLER GRUPPE 535 0116 10
SCHAEFFLER GRUPPE 535011610
Schaeffler INA F-230147.2
Schaeffler INA F2301472
SKF VKM 03604
SKF VKM 03616
SKF VKM03604
SKF VKM03616
SNR GA755.02
SNR GA75502
VALEO 588034
VALEO TG11C011
VALEO TG11C062
ZEN 5676

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
nissan
renault

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
