Width 1 (mm)	24
Number of teeth 1	194
Svhc	no svhc present!

Product number: 530 0561 10

Ina Timing Belt Kit For Alfa Romeo Chrysler Fiat Jeep Lancia Opel Suzuki Vauxhal

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 64,12

Add to cart

Description

INA Engine Drive Solutions

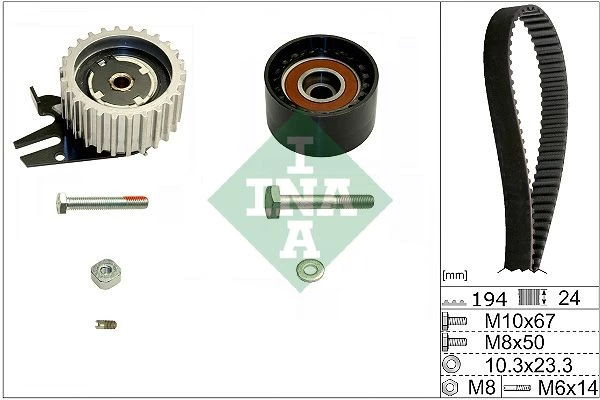

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
alfa romeo	46352133
alfa romeo	55192323
alfa romeo	55200441
alfa romeo	55212159
alfa romeo	60813590
alfa romeo	60813592
fiat	46350908
fiat	46352133
fiat	55183527
fiat	55191315
fiat	55200072
fiat	55200441
fiat	55208381
fiat	55215666
fiat	55238027
fiat	60813590
fiat	71747799
fiat	71754562
fiat	71777946
fiat	777 8565 , 7778565
fiat	7778565
jeep	46352133
jeep	K68093214AA
jeep	K68093234AA
jeep	K68189934AA
jeep	K68222043AA
opel	16 29 019 , 1629019
opel	1629019
opel	55 230 434 , 55230434
opel	55200072
opel	55212159
opel	55230434
opel	55238027
opel	55566028
opel	56 36 456 , 5636456
opel	56 36 475 , 5636475
opel	56 36 745 , 5636745
opel	5636456
opel	5636475
opel	5636745
opel	6 36 270 , 636270
opel	6 36 317 , 636317
opel	6 36 685 , 636685
opel	6 36 931 , 636931
opel	636270
opel	636317
opel	636685
opel	636931
opel	93178816
opel	93181966
opel	93186866
opel	95512576
suzuki	12781-79J50 , 1278179J50
suzuki	12781-79J51 , 1278179J51
suzuki	1278179J50
suzuki	1278179J51
suzuki	12810-79J52 , 1281079J52
suzuki	1281079J52
vauxhall	16 29 019 , 1629019
vauxhall	1629019
vauxhall	55 230 434 , 55230434
vauxhall	55200072
vauxhall	55212159
vauxhall	55230434
vauxhall	55238027
vauxhall	55566028
vauxhall	56 36 456 , 5636456
vauxhall	56 36 475 , 5636475
vauxhall	56 36 745 , 5636745
vauxhall	5636456
vauxhall	5636475
vauxhall	5636745
vauxhall	6 36 270 , 636270
vauxhall	6 36 317 , 636317
vauxhall	6 36 685 , 636685
vauxhall	6 36 931 , 636931
vauxhall	636270
vauxhall	636317
vauxhall	636685
vauxhall	636931
vauxhall	93178816
vauxhall	93181966
vauxhall	93186866
vauxhall	95512576

Usage numbers
BOSCH 1 987 948 961
BOSCH 1987948961
CONTINENTAL CTAM CT1155K1
DAYCO KTB761
GATES K015646XS
HUTCHINSON KH422
OPTIBELT KT 1547
OPTIBELT KT1547
RUVILLE 5603670
SCHAEFFLER GRUPPE 530 0561 10
SCHAEFFLER GRUPPE 530056110
SKF VKMA 02199
SKF VKMA02199
SNR KD458.57
SNR KD45857

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
alfa romeo
fiat
jeep
lancia
opel
suzuki
