Width 1 (mm)	30
Width 2 (mm)	24
Number of belts	2
Number of teeth 1	207
Number of teeth 2	87
Svhc	no svhc present!

Product number: 530 0539 10

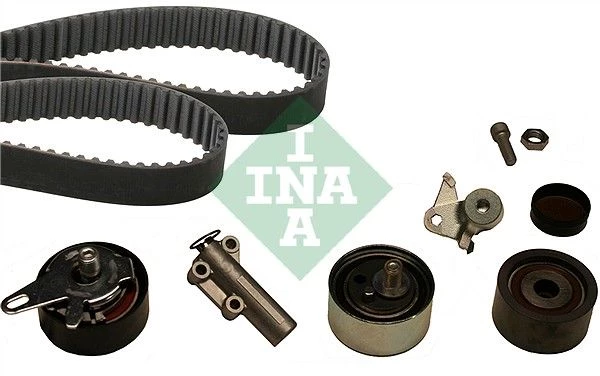

Ina Timing Belt Kit For Audi Skoda Vw A4 A6 A8 Allroad Passat Superb

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 177,86

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	059 109 119 A , 059109119A
audi	059 109 119 B , 059109119B
audi	059 109 243 D , 059109243D
audi	059 109 243 F , 059109243F
audi	059 109 243 G , 059109243G
audi	059 109 243 J , 059109243J
audi	059 109 243 L , 059109243L
audi	059 109 244 , 059109244
audi	059 109 244 A , 059109244A
audi	059 109 244 B , 059109244B
audi	059 109 479 B , 059109479B
audi	059 109 487 A , 059109487A
audi	059 109 487 B , 059109487B
audi	059 109 487 C , 059109487C
audi	059 130 113 , 059130113
audi	059 130 113 A , 059130113A
audi	059 130 113 B , 059130113B
audi	059109119A
audi	059109119B
audi	059109243D
audi	059109243F
audi	059109243G
audi	059109243J
audi	059109243L
audi	059109244
audi	059109244A
audi	059109244B
audi	059109479B
audi	059109487A
audi	059109487B
audi	059109487C
audi	059130113
audi	059130113A
audi	059130113B
seat	059 109 119 A , 059109119A
seat	059 109 119 B , 059109119B
seat	059 109 243 D , 059109243D
seat	059 109 243 F , 059109243F
seat	059 109 243 G , 059109243G
seat	059 109 243 J , 059109243J
seat	059 109 243 L , 059109243L
seat	059 109 244 , 059109244
seat	059 109 244 A , 059109244A
seat	059 109 244 B , 059109244B
seat	059 109 479 B , 059109479B
seat	059 109 487 A , 059109487A
seat	059 109 487 B , 059109487B
seat	059 109 487 C , 059109487C
seat	059 130 113 , 059130113
seat	059 130 113 A , 059130113A
seat	059 130 113 B , 059130113B
seat	059109119A
seat	059109119B
seat	059109243D
seat	059109243F
seat	059109243G
seat	059109243J
seat	059109243L
seat	059109244
seat	059109244A
seat	059109244B
seat	059109479B
seat	059109487A
seat	059109487B
seat	059109487C
seat	059130113
seat	059130113A
seat	059130113B
skoda	059 109 119 A , 059109119A
skoda	059 109 119 B , 059109119B
skoda	059 109 243 D , 059109243D
skoda	059 109 243 F , 059109243F
skoda	059 109 243 G , 059109243G
skoda	059 109 243 J , 059109243J
skoda	059 109 243 L , 059109243L
skoda	059 109 244 , 059109244
skoda	059 109 244 A , 059109244A
skoda	059 109 244 B , 059109244B
skoda	059 109 479 B , 059109479B
skoda	059 109 487 A , 059109487A
skoda	059 109 487 B , 059109487B
skoda	059 109 487 C , 059109487C
skoda	059 130 113 , 059130113
skoda	059 130 113 A , 059130113A
skoda	059 130 113 B , 059130113B
skoda	059109119A
skoda	059109119B
skoda	059109243D
skoda	059109243F
skoda	059109243G
skoda	059109243J
skoda	059109243L
skoda	059109244
skoda	059109244A
skoda	059109244B
skoda	059109479B
skoda	059109487A
skoda	059109487B
skoda	059109487C
skoda	059130113
skoda	059130113A
skoda	059130113B
vw	059 109 119 A , 059109119A
vw	059 109 119 B , 059109119B
vw	059 109 243 D , 059109243D
vw	059 109 243 F , 059109243F
vw	059 109 243 G , 059109243G
vw	059 109 243 J , 059109243J
vw	059 109 243 L , 059109243L
vw	059 109 244 , 059109244
vw	059 109 244 A , 059109244A
vw	059 109 244 B , 059109244B
vw	059 109 479 B , 059109479B
vw	059 109 487 A , 059109487A
vw	059 109 487 B , 059109487B
vw	059 109 487 C , 059109487C
vw	059 130 113 , 059130113
vw	059 130 113 A , 059130113A
vw	059 130 113 B , 059130113B
vw	059109119A
vw	059109119B
vw	059109243D
vw	059109243F
vw	059109243G
vw	059109243J
vw	059109243L
vw	059109244
vw	059109244A
vw	059109244B
vw	059109479B
vw	059109487A
vw	059109487B
vw	059109487C
vw	059130113
vw	059130113A
vw	059130113B

Usage numbers
BOSCH 1 987 948 152
BOSCH 1987948152
CONTINENTAL CTAM CT1015K4PRO
DAYCO KTB472
DAYCO KTB609
GATES K025557XS
GATES K045520XS
RUVILLE 5570377
SCHAEFFLER GRUPPE 530 0539 10
SCHAEFFLER GRUPPE 530053910
SKF VKMA01952

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
