Width 1 (mm)	25.4
Number of teeth 1	107
Svhc	no svhc present!

Product number: 530 0453 10

Ina Timing Belt Kit For Chevrolet Chevrolet (Sgmw) Daewoo Uz-daewoo Damas Labo M

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 27,82

Add to cart

Description

INA Engine Drive Solutions

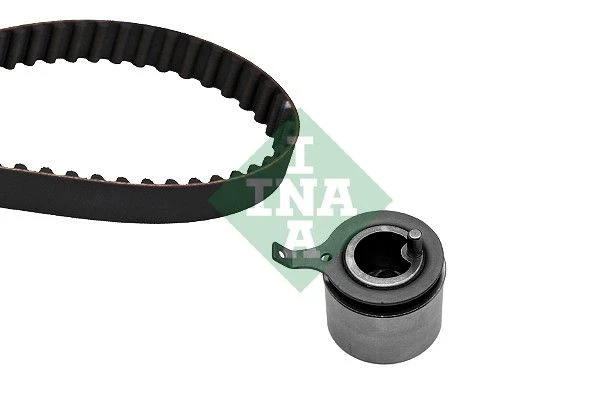

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
chevrolet	25201267
chevrolet	94580139
chevrolet	96352965
daewoo	12761-A78B00-000 , 12761A78B00000
daewoo	1276178B00
daewoo	12761A78B00
daewoo	12761A78B00000
daewoo	1281081400000
daewoo	1281081401000
daewoo	1281081402000
daewoo	96352965

Usage numbers
AUTEX 702616
BLUE PRINT ADG07317
BOSCH 1 987 946 300
BOSCH 1987946300
BREDA LORETT KCD0206
CONTINENTAL CTAM CT910K1
DAYCO KTB432
DAYCO-AU KTBA107
FEBI BILSTEIN 31428
FLENNOR F904323V
GATES K015434XS
IPD 20-1611
IPD 201611
OPTIBELT KT 1469
OPTIBELT KT1469
QUINTON HAZELL QBK358
QUINTON HAZELL QBK648
RUVILLE 5900370
SCHAEFFLER GRUPPE 530 0453 10
SCHAEFFLER GRUPPE 530045310
SKF VKMA90001
SNR KD453.21
SNR KD45321

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
chevrolet
daewoo

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.

EAN code	5038206334976
Productnumber	TB1200CPK
Brand	BGA

EAN code	5038206376211
Productnumber	TB1200K
Brand	BGA

EAN code	4005108041579
Productnumber	531 0112 20
Brand	Schaeffler INA

EAN code	4005108581549
Productnumber	530 0520 10
Brand	Schaeffler INA

EAN code	4005108839336
Productnumber	530 0453 30
Brand	Schaeffler INA

£ 50,39

£ 31,19

£ 16,93

£ 29,03

£ 62,91

£ 60,49

£ 76,22

£ 30,24

£ 15,72
