    Schaeffler INA
    Width 1 (mm) 18
    Number of teeth 1 134
    Svhc no svhc present!
    Product number: 530 0221 10

    Ina Timing Belt Kit For Fiat Lancia Brava Bravo Marea Y

    Price excl. vat.
    £ 43,55

    Description


    INA Engine Drive Solutions

    Timing Belt Kit

    The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

    OE-grade quality Complete solution Long service life

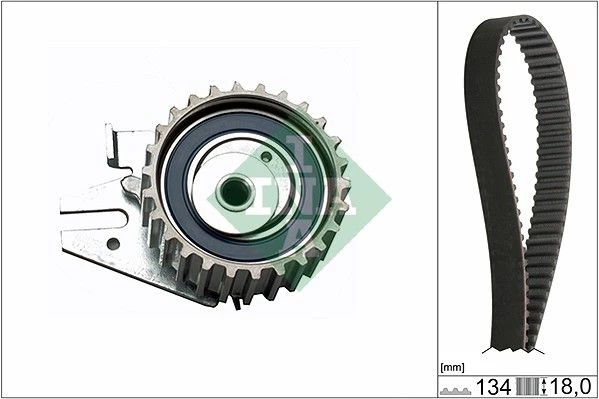

    INA Timing Belt Kit main view
    INA Timing Belt Kit beauty shot INA timing belt close-up INA timing belt kit with water pump

    Kit Features

    • Complete package: includes timing belt, tensioner, idlers, and all required hardware.
    • OE specification: precise tooth profile and belt length for correct timing.
    • High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
    • Optional water pump kits: available for full cooling system refresh during belt replacement.

    When to Replace

    • Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
    • Signs of belt wear such as cracks, fraying, or missing teeth.
    • Noise from tensioner or idlers.
    • Coolant leak from the water pump if integrated.
    Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

    How to Fit (Universal Guide)

    1. Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
    2. Remove covers & drain coolant (if water pump is included).
    3. Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
    4. Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
    5. Fit new belt: Align all timing marks exactly before tensioning.
    6. Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

    Always follow the exact procedure and torque values in your vehicle’s workshop manual.

    Manufacturer Productnumber
    fiat 55196971
    fiat 776 2910 , 7762910
    fiat 7762910
    fiat 778 2192 , 7782192
    fiat 7782192
    lancia 776 2910 , 7762910
    lancia 7762910
    lancia 778 2192 , 7782192
    lancia 7782192
    Usage numbers
    BOSCH 1 987 948 664
    BOSCH 1987948664
    CONTINENTAL CTAM CT878K1
    DAYCO KTB 218
    DAYCO KTB218
    FEBI BILSTEIN 11087
    GATES K 015431 XS
    GATES K015431XS
    HK RS1114
    HUTCHINSON KH119
    IPD 20-1114
    IPD 201114
    QUINTON HAZELL QBK567
    RUVILLE 5583170
    SCHAEFFLER GRUPPE 530 0221 10
    SCHAEFFLER GRUPPE 530022110
    SKF VKMA 02215
    SKF VKMA02215
    SNR KD458.29
    SNR KD45829
    TRIPLE FIVE 300 3657
    TRIPLE FIVE 3003657
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    fiat fiat
    lancia lancia
