Width 1 (mm)	19
Number of teeth 1	89
Svhc	no svhc present!

Product number: 530 0320 10

Ina Timing Belt Kit For Holden Suzuki Drover Samurai Sierra Sj413 Swift

Out of stock

Price incl. vat.

£ 29,03

Notify me when back in stock

Description

INA Engine Drive Solutions

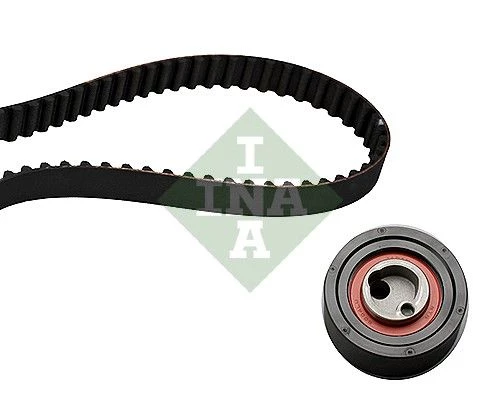

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
suzuki	12761-63B00 , 1276163B00
suzuki	12761-82000 , 1276182000
suzuki	1276163B00
suzuki	1276182000
suzuki	12810-82000 , 1281082000
suzuki	12810-82001 , 1281082001
suzuki	12810-82002 , 1281082002
suzuki	12810-82003 , 1281082003
suzuki	1281082000
suzuki	1281082001
suzuki	1281082002
suzuki	1281082003

Usage numbers
CONTINENTAL CTAM CT568K1
DAYCO KTB 234
DAYCO KTB234
DAYCO-AU KTBA260
GATES K 015122
GATES K015122
HK RS1163
IPD 20-1163
IPD 201163
QUINTON HAZELL QBK427
RUVILLE 5770270
SCHAEFFLER GRUPPE 530 0320 10
SCHAEFFLER GRUPPE 530032010
SKF VKMA 96202
SKF VKMA96202
SNR KD477.00
SNR KD47700

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
