    Schaeffler INA
    Outer diameter (mm) 60
    Width (mm) 29
    Svhc no svhc present!
    Product number: 531 0756 10

    Ina Timing Belt Tensioner Pulley For Citroën Fiat Ford Ford Australia Lancia Peu

    Price excl. vat.
    £ 20,56

    Description


    INA Engine Drive Components

    Timing Belt Tensioner Pulley

    The INA Timing Belt Tensioner Pulley ensures correct belt tension and alignment in the timing drive system. Precision bearings and OE-spec construction provide quiet operation, accurate timing, and long service life — preventing costly engine damage caused by belt failure.

    OE-grade accuracy Quiet operation Long-lasting bearings

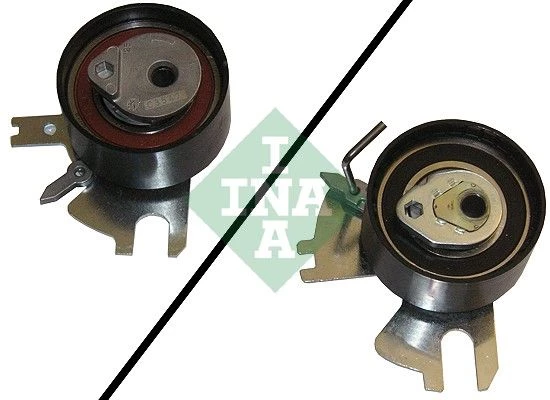

    INA Timing Belt Tensioner Pulley main view

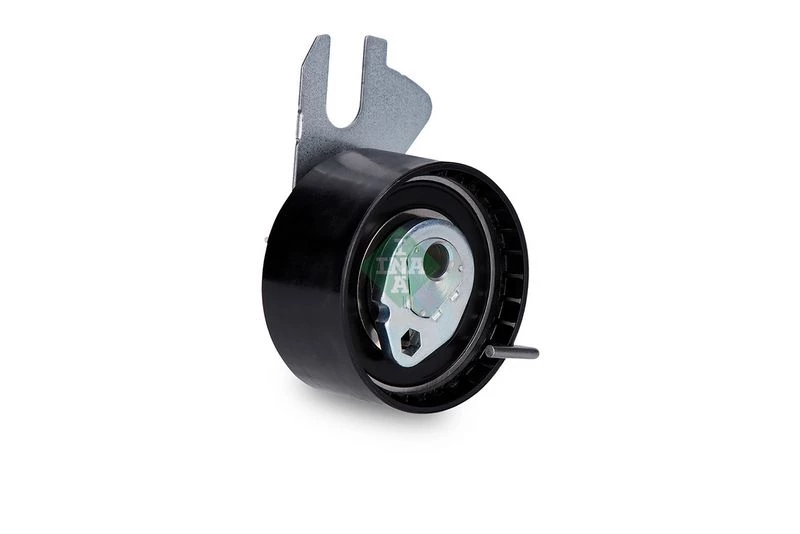

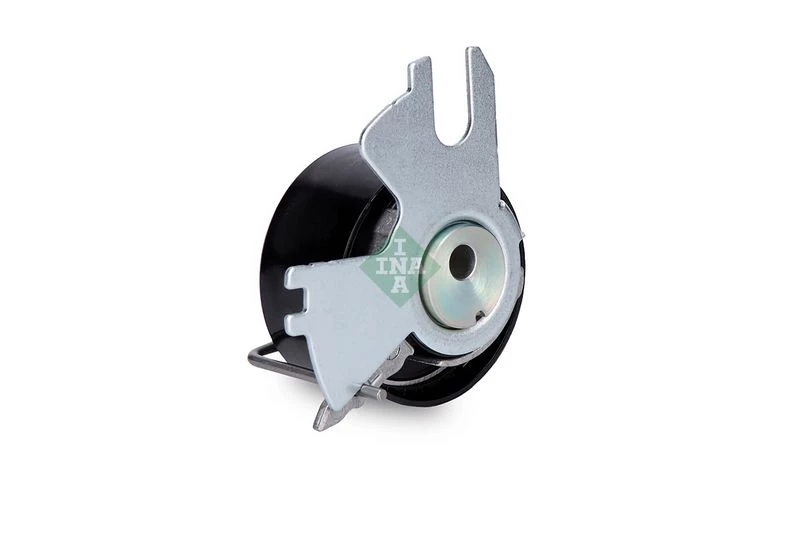

    INA Timing Belt Tensioner Pulley alternative view 1 INA Timing Belt Tensioner Pulley alternative view 2

    Key Features

    • Consistent tension: Maintains optimal belt tension for precise valve timing.
    • Premium bearings: Sealed to resist dirt, heat, and moisture.
    • OE fitment: Direct replacement with exact dimensions and mounting points.

    When to Replace

    • At manufacturer’s timing belt change interval (often 60,000–100,000 miles or 5–7 years).
    • Noisy or rough pulley bearing.
    • Visible damage or misalignment.
    • Whenever replacing the timing belt for preventative maintenance.
    Tip: Always replace the tensioner pulley along with the belt and idlers to avoid premature failure.

    How to Fit (Universal Guide)

    1. Preparation: Engine cold, battery disconnected. Refer to the timing diagram.
    2. Remove covers & belt: Release tension and remove the timing belt.
    3. Unbolt old pulley: Remove mounting bolt(s) and pulley.
    4. Inspect mount: Clean surface and check for wear.
    5. Install new INA pulley: Torque bolt to manufacturer’s specification.
    6. Reinstall belt: Align timing marks and set tension according to service manual.
    7. Test run: Rotate engine by hand, then start and check for correct operation.

    Always follow the workshop manual for torque values and procedures to avoid engine damage.

    Manufacturer Productnumber
    citroËn 0829.A3 , 0829A3
    citroËn 0829.A4 , 0829A4
    citroËn 0829A3
    citroËn 0829A4
    citroËn 96 408 284 80 , 9640828480
    citroËn 9640828480
    fiat 9464640480
    ford 1231975
    ford 3M5Q-6B217-AA , 3M5Q6B217AA
    ford 3M5Q6B217AA
    peugeot 0829.A3 , 0829A3
    peugeot 0829.A4 , 0829A4
    peugeot 0829A3
    peugeot 0829A4
    peugeot 96 408 284 80 , 9640828480
    peugeot 9640828480
    volvo 8653651
    Usage numbers
    AIRTEX TP-0080
    AIRTEX TP0080
    AJUSA 0829.A3
    AJUSA 0829.A4
    AJUSA 0829A3
    AJUSA 0829A4
    AJUSA 9640828480
    AUTEX 642078
    BOSCH 1 987 949 922
    BOSCH 1987949922
    BREDA LORETT CR3652
    CONTINENTAL CTAM V55973
    DAYCO ATB2303

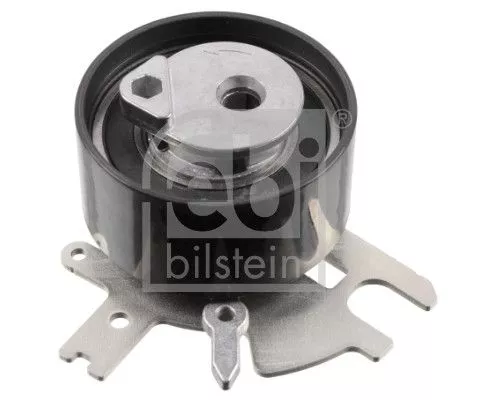

    FEBI BILSTEIN 26027
    GATES 7784-21082
    GATES 778421082
    GATES T43089
    GATES Z80457
    GK 642078
    HK S1073
    HUTCHINSON HTG211
    IPD 14-1073
    IPD 141073
    METELLI 28-0074
    METELLI 280074
    QUINTON HAZELL QTT1029
    RUVILLE 55973
    SCHAEFFLER GRUPPE 531 0756 10
    SCHAEFFLER GRUPPE 531075610
    Schaeffler INA F-571016
    Schaeffler INA F-625731
    Schaeffler INA F571016
    Schaeffler INA F625731
    SKF VKM13257
    SNR GT359.33
    SNR GT35933
    VAICO V25-0322
    VAICO V250322
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    citroËn citroËn
    fiat fiat
    ford ford
    lancia lancia
    peugeot peugeot
    volvo volvo
