Width 1 (mm)	30
Number of teeth 1	281
Svhc	no svhc present!

Product number: 530 0480 30

Ina Water Pump & Timing Belt Kit For Audi A4 A6 A8

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 331,53

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

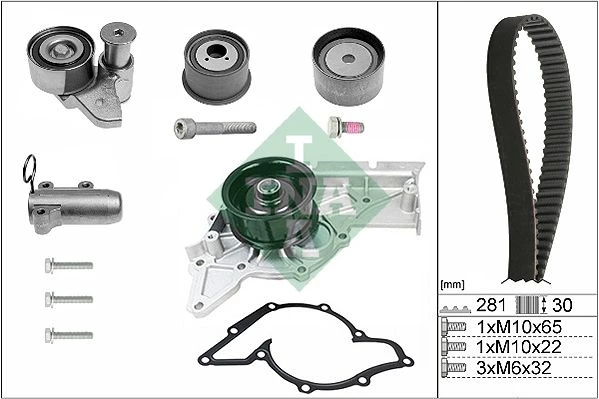

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	06C 109 119 C , 06C109119C
audi	06C 109 244 , 06C109244
audi	06C 109 244 C , 06C109244C
audi	06C 109 244 D , 06C109244D
audi	06C 109 479 A , 06C109479A
audi	06C 109 485 A , 06C109485A
audi	06C 121 004 C , 06C121004C
audi	06C 121 004 G , 06C121004G
audi	06C 121 004 H , 06C121004H
audi	06C 121 004 HX , 06C121004HX
audi	06C109119C
audi	06C109244
audi	06C109244C
audi	06C109244D
audi	06C109479A
audi	06C109485A
audi	06C121004C
audi	06C121004G
audi	06C121004H
audi	06C121004HX
seat	06C 109 119 C , 06C109119C
seat	06C 109 244 , 06C109244
seat	06C 109 244 C , 06C109244C
seat	06C 109 244 D , 06C109244D
seat	06C 109 479 A , 06C109479A
seat	06C 109 485 A , 06C109485A
seat	06C 121 004 C , 06C121004C
seat	06C 121 004 G , 06C121004G
seat	06C 121 004 H , 06C121004H
seat	06C 121 004 HX , 06C121004HX
seat	06C109119C
seat	06C109244
seat	06C109244C
seat	06C109244D
seat	06C109479A
seat	06C109485A
seat	06C121004C
seat	06C121004G
seat	06C121004H
seat	06C121004HX
skoda	06C 109 119 C , 06C109119C
skoda	06C 109 244 , 06C109244
skoda	06C 109 244 C , 06C109244C
skoda	06C 109 244 D , 06C109244D
skoda	06C 109 479 A , 06C109479A
skoda	06C 109 485 A , 06C109485A
skoda	06C 121 004 C , 06C121004C
skoda	06C 121 004 G , 06C121004G
skoda	06C 121 004 H , 06C121004H
skoda	06C 121 004 HX , 06C121004HX
skoda	06C109119C
skoda	06C109244
skoda	06C109244C
skoda	06C109244D
skoda	06C109479A
skoda	06C109485A
skoda	06C121004C
skoda	06C121004G
skoda	06C121004H
skoda	06C121004HX
vw	06C 109 119 C , 06C109119C
vw	06C 109 244 , 06C109244
vw	06C 109 244 C , 06C109244C
vw	06C 109 244 D , 06C109244D
vw	06C 109 479 A , 06C109479A
vw	06C 109 485 A , 06C109485A
vw	06C 121 004 C , 06C121004C
vw	06C 121 004 G , 06C121004G
vw	06C 121 004 H , 06C121004H
vw	06C 121 004 HX , 06C121004HX
vw	06C109119C
vw	06C109244
vw	06C109244C
vw	06C109244D
vw	06C109479A
vw	06C109485A
vw	06C121004C
vw	06C121004G
vw	06C121004H
vw	06C121004HX

Usage numbers
GK K980261C
RUVILLE 55742711

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
