Width 1 (mm)	23
Number of teeth 1	138
Svhc	no svhc present!

Product number: 530 0171 31

Ina Water Pump & Timing Belt Kit For Audi Seat Skoda Vw A3 A4 Altea Altea Xl Bor

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 73,80

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

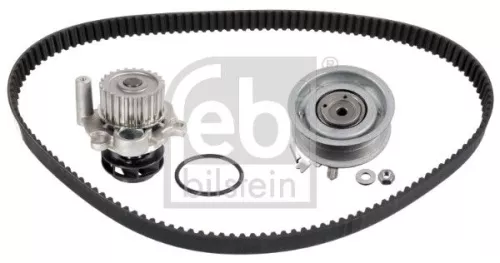

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	06A 109 119 B , 06A109119B
audi	06A 109 119 C , 06A109119C
audi	06A 109 119 D , 06A109119D
audi	06A 109 119 J , 06A109119J
audi	06A 109 119 K , 06A109119K
audi	06A 109 479 , 06A109479
audi	06A 109 479 A , 06A109479A
audi	06A 109 479 B , 06A109479B
audi	06A 109 479 C , 06A109479C
audi	06A 109 479 F , 06A109479F
audi	06A109119B
audi	06A109119C
audi	06A109119D
audi	06A109119J
audi	06A109119K
audi	06A109479
audi	06A109479A
audi	06A109479B
audi	06A109479C
audi	06A109479F
audi	06B 121 011 , 06B121011
audi	06B 121 011 A , 06B121011A
audi	06B 121 011 B , 06B121011B
audi	06B 121 011 BX , 06B121011BX
audi	06B 121 011 C , 06B121011C
audi	06B 121 011 CV , 06B121011CV
audi	06B 121 011 CX , 06B121011CX
audi	06B 121 011 E , 06B121011E
audi	06B 121 011 EX , 06B121011EX
audi	06B 121 011 H , 06B121011H
audi	06B 121 011 HX , 06B121011HX
audi	06B 121 011 L , 06B121011L
audi	06B 121 011 LX , 06B121011LX
audi	06B 121 011 M , 06B121011M
audi	06B 121 011 MX , 06B121011MX
audi	06B 121 011 N , 06B121011N
audi	06B 121 011 NX , 06B121011NX
audi	06B 121 011 Q , 06B121011Q
audi	06B 121 011 QX , 06B121011QX
audi	06B121011
audi	06B121011A
audi	06B121011B
audi	06B121011BX
audi	06B121011C
audi	06B121011CV
audi	06B121011CX
audi	06B121011E
audi	06B121011EX
audi	06B121011H
audi	06B121011HX
audi	06B121011L
audi	06B121011LX
audi	06B121011M
audi	06B121011MX
audi	06B121011N
audi	06B121011NX
audi	06B121011Q
audi	06B121011QX
seat	06A 109 119 B , 06A109119B
seat	06A 109 119 C , 06A109119C
seat	06A 109 119 D , 06A109119D
seat	06A 109 119 J , 06A109119J
seat	06A 109 119 K , 06A109119K
seat	06A 109 479 , 06A109479
seat	06A 109 479 A , 06A109479A
seat	06A 109 479 B , 06A109479B
seat	06A 109 479 C , 06A109479C
seat	06A 109 479 F , 06A109479F
seat	06A109119B
seat	06A109119C
seat	06A109119D
seat	06A109119J
seat	06A109119K
seat	06A109479
seat	06A109479A
seat	06A109479B
seat	06A109479C
seat	06A109479F
seat	06B 121 011 , 06B121011
seat	06B 121 011 A , 06B121011A
seat	06B 121 011 B , 06B121011B
seat	06B 121 011 BX , 06B121011BX
seat	06B 121 011 C , 06B121011C
seat	06B 121 011 CV , 06B121011CV
seat	06B 121 011 CX , 06B121011CX
seat	06B 121 011 E , 06B121011E
seat	06B 121 011 EX , 06B121011EX
seat	06B 121 011 H , 06B121011H
seat	06B 121 011 HX , 06B121011HX
seat	06B 121 011 L , 06B121011L
seat	06B 121 011 LX , 06B121011LX
seat	06B 121 011 M , 06B121011M
seat	06B 121 011 MX , 06B121011MX
seat	06B 121 011 N , 06B121011N
seat	06B 121 011 NX , 06B121011NX
seat	06B 121 011 Q , 06B121011Q
seat	06B 121 011 QX , 06B121011QX
seat	06B121011
seat	06B121011A
seat	06B121011B
seat	06B121011BX
seat	06B121011C
seat	06B121011CV
seat	06B121011CX
seat	06B121011E
seat	06B121011EX
seat	06B121011H
seat	06B121011HX
seat	06B121011L
seat	06B121011LX
seat	06B121011M
seat	06B121011MX
seat	06B121011N
seat	06B121011NX
seat	06B121011Q
seat	06B121011QX
skoda	06A 109 119 B , 06A109119B
skoda	06A 109 119 C , 06A109119C
skoda	06A 109 119 D , 06A109119D
skoda	06A 109 119 J , 06A109119J
skoda	06A 109 119 K , 06A109119K
skoda	06A 109 479 , 06A109479
skoda	06A 109 479 A , 06A109479A
skoda	06A 109 479 B , 06A109479B
skoda	06A 109 479 C , 06A109479C
skoda	06A 109 479 F , 06A109479F
skoda	06A109119B
skoda	06A109119C
skoda	06A109119D
skoda	06A109119J
skoda	06A109119K
skoda	06A109479
skoda	06A109479A
skoda	06A109479B
skoda	06A109479C
skoda	06A109479F
skoda	06B 121 011 , 06B121011
skoda	06B 121 011 A , 06B121011A
skoda	06B 121 011 B , 06B121011B
skoda	06B 121 011 BX , 06B121011BX
skoda	06B 121 011 C , 06B121011C
skoda	06B 121 011 CV , 06B121011CV
skoda	06B 121 011 CX , 06B121011CX
skoda	06B 121 011 E , 06B121011E
skoda	06B 121 011 EX , 06B121011EX
skoda	06B 121 011 H , 06B121011H
skoda	06B 121 011 HX , 06B121011HX
skoda	06B 121 011 L , 06B121011L
skoda	06B 121 011 LX , 06B121011LX
skoda	06B 121 011 M , 06B121011M
skoda	06B 121 011 MX , 06B121011MX
skoda	06B 121 011 N , 06B121011N
skoda	06B 121 011 NX , 06B121011NX
skoda	06B 121 011 Q , 06B121011Q
skoda	06B 121 011 QX , 06B121011QX
skoda	06B121011
skoda	06B121011A
skoda	06B121011B
skoda	06B121011BX
skoda	06B121011C
skoda	06B121011CV
skoda	06B121011CX
skoda	06B121011E
skoda	06B121011EX
skoda	06B121011H
skoda	06B121011HX
skoda	06B121011L
skoda	06B121011LX
skoda	06B121011M
skoda	06B121011MX
skoda	06B121011N
skoda	06B121011NX
skoda	06B121011Q
skoda	06B121011QX
vw	06A 109 119 B , 06A109119B
vw	06A 109 119 C , 06A109119C
vw	06A 109 119 D , 06A109119D
vw	06A 109 119 J , 06A109119J
vw	06A 109 119 K , 06A109119K
vw	06A 109 479 , 06A109479
vw	06A 109 479 A , 06A109479A
vw	06A 109 479 B , 06A109479B
vw	06A 109 479 C , 06A109479C
vw	06A 109 479 F , 06A109479F
vw	06A109119B
vw	06A109119C
vw	06A109119D
vw	06A109119J
vw	06A109119K
vw	06A109479
vw	06A109479A
vw	06A109479B
vw	06A109479C
vw	06A109479F
vw	06B 121 011 , 06B121011
vw	06B 121 011 A , 06B121011A
vw	06B 121 011 B , 06B121011B
vw	06B 121 011 BX , 06B121011BX
vw	06B 121 011 C , 06B121011C
vw	06B 121 011 CV , 06B121011CV
vw	06B 121 011 CX , 06B121011CX
vw	06B 121 011 E , 06B121011E
vw	06B 121 011 EX , 06B121011EX
vw	06B 121 011 H , 06B121011H
vw	06B 121 011 HX , 06B121011HX
vw	06B 121 011 L , 06B121011L
vw	06B 121 011 LX , 06B121011LX
vw	06B 121 011 M , 06B121011M
vw	06B 121 011 MX , 06B121011MX
vw	06B 121 011 N , 06B121011N
vw	06B 121 011 NX , 06B121011NX
vw	06B 121 011 Q , 06B121011Q
vw	06B 121 011 QX , 06B121011QX
vw	06B121011
vw	06B121011A
vw	06B121011B
vw	06B121011BX
vw	06B121011C
vw	06B121011CV
vw	06B121011CX
vw	06B121011E
vw	06B121011EX
vw	06B121011H
vw	06B121011HX
vw	06B121011L
vw	06B121011LX
vw	06B121011M
vw	06B121011MX
vw	06B121011N
vw	06B121011NX
vw	06B121011Q
vw	06B121011QX

Usage numbers
BOSCH 1987946921
CONTINENTAL CTAM CT908WP1
DAYCO KTBWP2530
FEBI BILSTEIN 32814
GATES KP15489XS-1
GATES KP15489XS1
GK K980130A
GK K980260A
HEPU PK05450
HEPU PK05720
METELLI 30-0904-1
METELLI 3009041
OPTIBELT KT 1133 W2
OPTIBELT KT1133W2
RUVILLE 55443701
SCHAEFFLER GRUPPE 530 0171 31
SCHAEFFLER GRUPPE 530017131
Schaeffler INA 530017131
SKF VKMC01113-1
SKF VKMC011131
VAICO V10-50106-BEK
VAICO V1050106BEK
