Width 1 (mm)	17
Number of teeth 1	114
Svhc	no svhc present!

Product number: 530 0258 31

Ina Water Pump & Timing Belt Kit For Citroën Fiat Lancia Peugeot 306 405 406 605

Out of stock

Price incl. vat.

£ 65,33

Notify me when back in stock

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

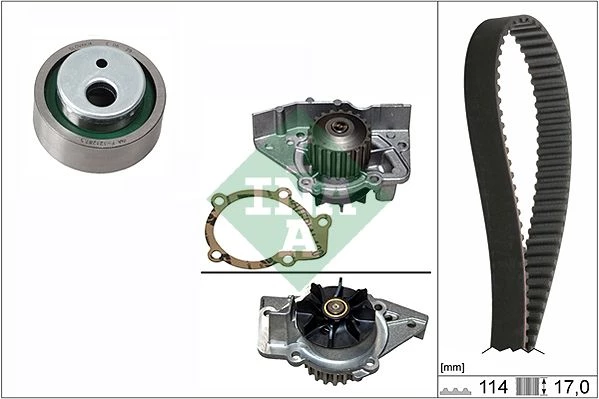

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	00 000 829 19 , 0000082919
citroËn	00 000 829 54 , 0000082954
citroËn	0000082919
citroËn	0000082954
citroËn	0816.48 , 081648
citroËn	0816.60 , 081660
citroËn	0816.62 , 081662
citroËn	0816.71 , 081671
citroËn	081648
citroËn	081660
citroËn	081662
citroËn	081671
citroËn	0820.53 , 082053
citroËn	082053
citroËn	0829.19 , 082919
citroËn	0829.29 , 082929
citroËn	0829.54 , 082954
citroËn	082919
citroËn	082929
citroËn	082954
citroËn	1201.52 , 120152
citroËn	1201.65 , 120165
citroËn	1201.67 , 120167
citroËn	1201.91 , 120191
citroËn	1201.A4 , 1201A4
citroËn	120152
citroËn	120165
citroËn	120167
citroËn	120191
citroËn	1201A4
citroËn	95 639 605 , 95639605
citroËn	95 650 955 , 95650955
citroËn	95 666 768 , 95666768
citroËn	95639605
citroËn	95650955
citroËn	95666768
citroËn	96 058 570 , 96058570
citroËn	96 100 168 , 96100168
citroËn	96 141 369 , 96141369
citroËn	96 281 179 , 96281179
citroËn	96058570
citroËn	96100168
citroËn	96141369
citroËn	96281179
citroËn	97 522 886 , 97522886
citroËn	97 535 002 , 97535002
citroËn	97522886
citroËn	97535002
fiat	71739136
fiat	71739922
fiat	9565095580
fiat	9566945680
fiat	9566945688
fiat	9567521488
fiat	96197793
lancia	71739136
lancia	71739922
lancia	9400831069
lancia	9565095580
lancia	9566945680
lancia	9566945688
lancia	9567521488
lancia	96197793
lancia	9619779380
peugeot	00 000 829 19 , 0000082919
peugeot	00 000 829 54 , 0000082954
peugeot	0000082919
peugeot	0000082954
peugeot	0816.48 , 081648
peugeot	0816.60 , 081660
peugeot	0816.62 , 081662
peugeot	0816.71 , 081671
peugeot	081648
peugeot	081660
peugeot	081662
peugeot	081671
peugeot	0820.53 , 082053
peugeot	082053
peugeot	0829.19 , 082919
peugeot	0829.29 , 082929
peugeot	0829.54 , 082954
peugeot	082919
peugeot	082929
peugeot	082954
peugeot	1201.52 , 120152
peugeot	1201.65 , 120165
peugeot	1201.67 , 120167
peugeot	1201.91 , 120191
peugeot	1201.A4 , 1201A4
peugeot	120152
peugeot	120165
peugeot	120167
peugeot	120191
peugeot	1201A4
peugeot	95 639 605 , 95639605
peugeot	95 650 955 , 95650955
peugeot	95 666 768 , 95666768
peugeot	95639605
peugeot	95650955
peugeot	95666768
peugeot	96 058 570 , 96058570
peugeot	96 100 168 , 96100168
peugeot	96 141 369 , 96141369
peugeot	96 281 179 , 96281179
peugeot	96058570
peugeot	96100168
peugeot	96141369
peugeot	96281179
peugeot	97 522 886 , 97522886
peugeot	97 535 002 , 97535002
peugeot	97522886
peugeot	97535002

Usage numbers
BOSCH 1 987 946 409
BOSCH 1987946409
GATES KP25215XS-1
GATES KP25215XS1
HEPU PK08363
RUVILLE 56620702
SCHAEFFLER GRUPPE 530 0258 31
SCHAEFFLER GRUPPE 530025831

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
