Width 1 (mm)	25.4
Number of teeth 1	141
Svhc	no svhc present!

Product number: 530 0470 30

Ina Water Pump & Timing Belt Kit For Citroën Fiat Lancia Peugeot Suzuki 206 306

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 71,38

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

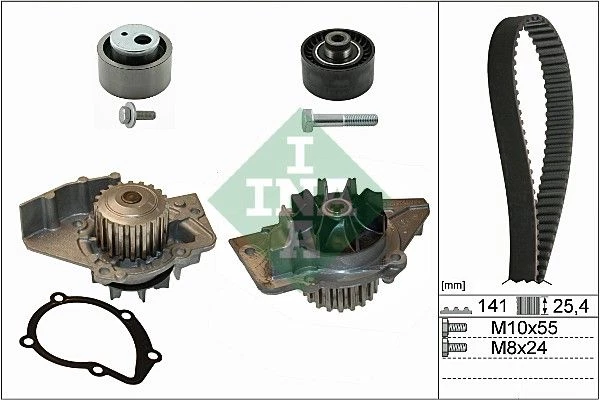

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	0816.96 , 081696
citroËn	0816.A9 , 0816A9
citroËn	081696
citroËn	0816A9
citroËn	0829.59 , 082959
citroËn	082959
citroËn	0830.11 , 083011
citroËn	0830.14 , 083014
citroËn	0830.16 , 083016
citroËn	0830.36 , 083036
citroËn	0830.37 , 083037
citroËn	0830.46 , 083046
citroËn	0830.63 , 083063
citroËn	083011
citroËn	083014
citroËn	083016
citroËn	083036
citroËn	083037
citroËn	083046
citroËn	083063
citroËn	1201.C4 , 1201C4
citroËn	1201C4
citroËn	16 094 023 80 , 1609402380
citroËn	16 095 246 80 , 1609524680
citroËn	1609402380
citroËn	1609524680
citroËn	96 099 089 , 96099089
citroËn	96 194 727 , 96194727
citroËn	96 201 309 , 96201309
citroËn	96 261 574 80 , 9626157480
citroËn	96 290 822 80 , 9629082280
citroËn	96099089
citroËn	96194727
citroËn	96201309
citroËn	9626157480
citroËn	9629082280
fiat	1609402380
fiat	71771596
fiat	71777100
fiat	9400816969
fiat	9400829598
fiat	9400830149
fiat	9400830379
fiat	9400830639
fiat	9463380680
fiat	9569147388
lancia	1609402380
lancia	9400816969
lancia	9400830149
lancia	9400830379
lancia	9463380680
lancia	9569147388
peugeot	0816.96 , 081696
peugeot	0816.A9 , 0816A9
peugeot	081696
peugeot	0816A9
peugeot	0829.59 , 082959
peugeot	082959
peugeot	0830.11 , 083011
peugeot	0830.14 , 083014
peugeot	0830.16 , 083016
peugeot	0830.36 , 083036
peugeot	0830.37 , 083037
peugeot	0830.46 , 083046
peugeot	0830.63 , 083063
peugeot	083011
peugeot	083014
peugeot	083016
peugeot	083036
peugeot	083037
peugeot	083046
peugeot	083063
peugeot	1201.C4 , 1201C4
peugeot	1201C4
peugeot	16 094 023 80 , 1609402380
peugeot	16 095 246 80 , 1609524680
peugeot	1609402380
peugeot	1609524680
peugeot	96 099 089 , 96099089
peugeot	96 194 727 , 96194727
peugeot	96 201 309 , 96201309
peugeot	96 261 574 80 , 9626157480
peugeot	96 290 822 80 , 9629082280
peugeot	96099089
peugeot	96194727
peugeot	96201309
peugeot	9626157480
peugeot	9629082280
suzuki	12761-67G00 , 1276167G00
suzuki	12761-86CT0 , 1276186CT0
suzuki	1276167G00
suzuki	1276186CT0
suzuki	17410-67G00 , 1741067G00
suzuki	1741067G00

Usage numbers
BOSCH 1 987 946 405
BOSCH 1987946405
CONTINENTAL CTAM CT987WP2
DAYCO KTBWP1970
GATES KP25524XS
GATES KP35524XS
RUVILLE 55997711
Saleri SIL K4PA1054
SCHAEFFLER GRUPPE 530 0470 30
SCHAEFFLER GRUPPE 530047030
Schaeffler INA 530047030
SKF VKMC 03247
SKF VKMC03247
SNR KDP459.510
SNR KDP459510

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
lancia
peugeot
suzuki
