Width 1 (mm)	17
Number of teeth 1	104
Svhc	no svhc present!

Product number: 530 0335 30

Ina Water Pump & Timing Belt Kit For Citroën Fiat Peugeot 1007 106 206 206+ 207

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 64,12

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

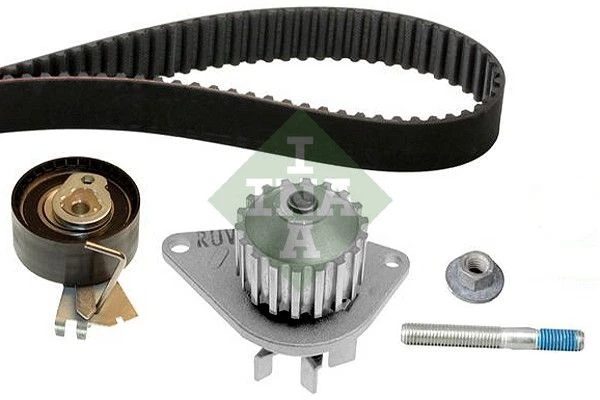

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	0816.86 , 081686
citroËn	0816.F2 , 0816F2
citroËn	081686
citroËn	0816F2
citroËn	0829.90 , 082990
citroËn	082990
citroËn	1201.G0 , 1201G0
citroËn	1201G0
citroËn	16 094 170 80 , 1609417080
citroËn	16 095 251 80 , 1609525180
citroËn	16 107 932 80 , 1610793280
citroËn	1609417080
citroËn	1609525180
citroËn	1610793280
citroËn	94 008 299 09 , 9400829909
citroËn	9400829909
citroËn	96 312 030 80 , 9631203080
citroËn	96 426 298 , 96426298
citroËn	96 426 298 80 , 9642629880
citroËn	96 429 298 , 96429298
citroËn	9631203080
citroËn	96426298
citroËn	9642629880
citroËn	96429298
fiat	1609417080
fiat	9467581780
fiat	9631169188
fiat	9642929880
peugeot	0816.86 , 081686
peugeot	0816.F2 , 0816F2
peugeot	081686
peugeot	0816F2
peugeot	0829.90 , 082990
peugeot	082990
peugeot	1201.G0 , 1201G0
peugeot	1201G0
peugeot	16 094 170 80 , 1609417080
peugeot	16 095 251 80 , 1609525180
peugeot	16 107 932 80 , 1610793280
peugeot	1609417080
peugeot	1609525180
peugeot	1610793280
peugeot	94 008 299 09 , 9400829909
peugeot	9400829909
peugeot	96 312 030 80 , 9631203080
peugeot	96 426 298 , 96426298
peugeot	96 426 298 80 , 9642629880
peugeot	96 429 298 , 96429298
peugeot	9631203080
peugeot	96426298
peugeot	9642629880
peugeot	96429298

Usage numbers
AIRTEX WPK-167902
AIRTEX WPK167902
BOSCH 1 987 946 934
BOSCH 1 987 948 725
BOSCH 1987946934
BOSCH 1987948725
CONTINENTAL CTAM CT1067WP1
DAYCO KTBWP3361
FEBI BILSTEIN 32725
GATES KP15575XS
GK K986846B
HEPU PK08461
METELLI 30-0837-1
METELLI 3008371
QUINTON HAZELL QBPK5780
RUVILLE 55958712
SCHAEFFLER GRUPPE 530 0335 30
SCHAEFFLER GRUPPE 530033530
SKF VKMC03254
SNR KDP459.350
SNR KDP459350

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
peugeot
