Width 1 (mm)	25.4
Number of teeth 1	140
Svhc	no svhc present!

Product number: 530 0440 30

Ina Water Pump & Timing Belt Kit For Citroën Fiat Peugeot 206 206 Van 306 Berlin

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 71,38

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

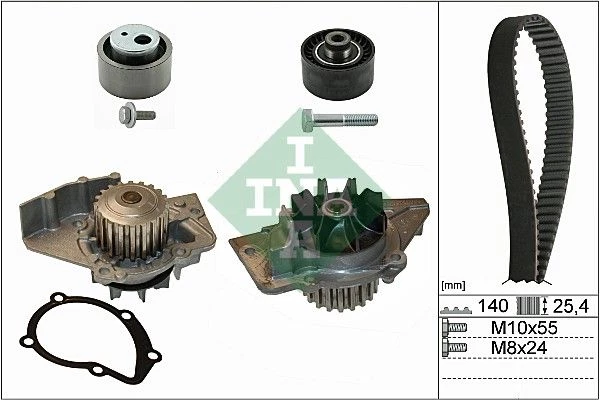

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	0816.93 , 081693
citroËn	081693
citroËn	0829.59 , 082959
citroËn	082959
citroËn	0830.11 , 083011
citroËn	0830.14 , 083014
citroËn	0830.16 , 083016
citroËn	0830.36 , 083036
citroËn	0830.37 , 083037
citroËn	0830.46 , 083046
citroËn	0830.63 , 083063
citroËn	083011
citroËn	083014
citroËn	083016
citroËn	083036
citroËn	083037
citroËn	083046
citroËn	083063
citroËn	1201.C4 , 1201C4
citroËn	1201C4
citroËn	16 094 023 80 , 1609402380
citroËn	16 118 979 80 , 1611897980
citroËn	1609402380
citroËn	1611897980
citroËn	96 099 089 , 96099089
citroËn	96 194 727 , 96194727
citroËn	96 201 309 , 96201309
citroËn	96 223 131 , 96223131
citroËn	96 252 153 , 96252153
citroËn	96099089
citroËn	96194727
citroËn	96201309
citroËn	96223131
citroËn	96252153
fiat	1609402380
fiat	9400816939
fiat	9400829598
fiat	9400830149
fiat	9400830379
fiat	9400830639
fiat	9569147388
peugeot	0816.93 , 081693
peugeot	081693
peugeot	0829.59 , 082959
peugeot	082959
peugeot	0830.11 , 083011
peugeot	0830.14 , 083014
peugeot	0830.16 , 083016
peugeot	0830.36 , 083036
peugeot	0830.37 , 083037
peugeot	0830.46 , 083046
peugeot	0830.63 , 083063
peugeot	083011
peugeot	083014
peugeot	083016
peugeot	083036
peugeot	083037
peugeot	083046
peugeot	083063
peugeot	1201.C4 , 1201C4
peugeot	1201C4
peugeot	16 094 023 80 , 1609402380
peugeot	16 118 979 80 , 1611897980
peugeot	1609402380
peugeot	1611897980
peugeot	96 099 089 , 96099089
peugeot	96 194 727 , 96194727
peugeot	96 201 309 , 96201309
peugeot	96 223 131 , 96223131
peugeot	96 252 153 , 96252153
peugeot	96099089
peugeot	96194727
peugeot	96201309
peugeot	96223131
peugeot	96252153

Usage numbers
BOSCH 1 987 946 404
BOSCH 1987946404
CONTINENTAL CTAM CT986WP2
DAYCO KTBWP1960
FEBI BILSTEIN 34638
GATES KP15523XS
GATES KP25523XS
HUTCHINSON KH 72WP31
HUTCHINSON KH72WP31
RUVILLE 55997701
Saleri SIL K3PA1054
SCHAEFFLER GRUPPE 530 0440 30
SCHAEFFLER GRUPPE 530044030
Schaeffler INA 530044030
SKF VKMC 03244
SKF VKMC03244

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
peugeot

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
