Width 1 (mm)	26.5
Number of teeth 1	122
Svhc	no svhc present!

Product number: 530 0153 30

Ina Water Pump & Timing Belt Kit For Vw Transporter

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 72,59

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

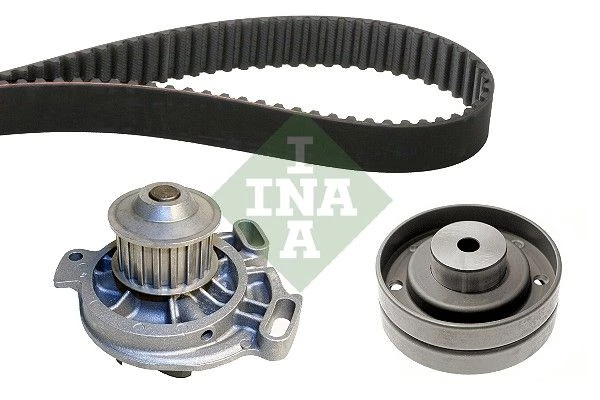

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	023 121 004 , 023121004
audi	023 121 004 V , 023121004V
audi	023 121 004 X , 023121004X
audi	023121004
audi	023121004V
audi	023121004X
audi	046 109 119 , 046109119
audi	046109119
audi	069 109 243 B , 069109243B
audi	069109243B
audi	074 109 119 A , 074109119A
audi	074 109 119 B , 074109119B
audi	074 109 119 E , 074109119E
audi	074 109 119 R , 074109119R
audi	074109119A
audi	074109119B
audi	074109119E
audi	074109119R
seat	023 121 004 , 023121004
seat	023 121 004 V , 023121004V
seat	023 121 004 X , 023121004X
seat	023121004
seat	023121004V
seat	023121004X
seat	046 109 119 , 046109119
seat	046109119
seat	069 109 243 B , 069109243B
seat	069109243B
seat	074 109 119 A , 074109119A
seat	074 109 119 B , 074109119B
seat	074 109 119 E , 074109119E
seat	074 109 119 R , 074109119R
seat	074109119A
seat	074109119B
seat	074109119E
seat	074109119R
skoda	023 121 004 , 023121004
skoda	023 121 004 V , 023121004V
skoda	023 121 004 X , 023121004X
skoda	023121004
skoda	023121004V
skoda	023121004X
skoda	046 109 119 , 046109119
skoda	046109119
skoda	069 109 243 B , 069109243B
skoda	069109243B
skoda	074 109 119 A , 074109119A
skoda	074 109 119 B , 074109119B
skoda	074 109 119 E , 074109119E
skoda	074 109 119 R , 074109119R
skoda	074109119A
skoda	074109119B
skoda	074109119E
skoda	074109119R
vw	023 121 004 , 023121004
vw	023 121 004 V , 023121004V
vw	023 121 004 X , 023121004X
vw	023121004
vw	023121004V
vw	023121004X
vw	046 109 119 , 046109119
vw	046109119
vw	069 109 243 B , 069109243B
vw	069109243B
vw	074 109 119 A , 074109119A
vw	074 109 119 B , 074109119B
vw	074 109 119 E , 074109119E
vw	074 109 119 R , 074109119R
vw	074109119A
vw	074109119B
vw	074109119E
vw	074109119R

Usage numbers
AIRTEX WPK-9274R02
AIRTEX WPK9274R02
BOSCH 1 987 948 511
BOSCH 1987948511
CONTINENTAL CTAM CT939WP1
CONTINENTAL CTAM CT939WP7PRO
DAYCO KTBWP3430
GK K980163B
HEPU PK05280
RUVILLE 55401721
SCHAEFFLER GRUPPE 530 0153 30
SCHAEFFLER GRUPPE 530015330
Schaeffler INA 530015330

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
