Transmission type	not for semi-automatic
Number of mounting bores	2
Svhc	no svhc present!

Product number: 510 0225 10

Luk Central Slave Cylinder Clutch For Fiat Mercedes-benz Nissan Opel Renault Vau

In stock

Shipping method	Delivery time	Stock
Shipping	14-8-2025	3

Price excl. vat.

£ 64,12

Add to cart

Description

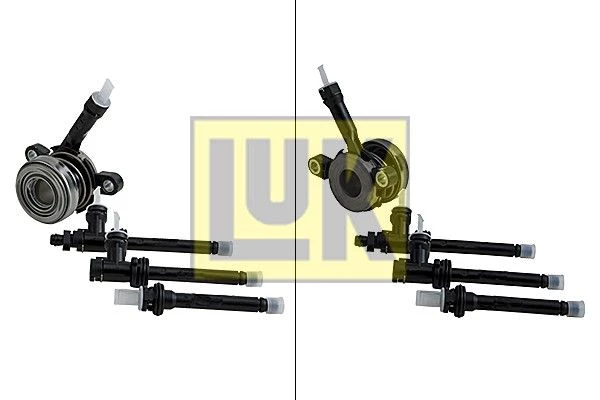

LuK (Schaeffler) · Central Slave Cylinder

LuK Central Slave Cylinder (CSC)

The LuK Central Slave Cylinder integrates the clutch release mechanism with the hydraulic slave cylinder in a single precision-engineered unit. Mounted directly around the gearbox input shaft, it delivers smooth, consistent clutch operation while reducing weight and complexity compared to traditional fork-and-bearing systems.

Key Features

OE-matched fit and function for direct replacement
High-strength polymer/aluminium body with integrated release bearing
Premium elastomer seals for reliable, leak-free performance under high pressure
Pre-lubricated bearing for quiet, low-friction operation
Fully tested for pressure integrity and smooth engagement/disengagement

What’s Included

1× LuK Central Slave Cylinder (with integrated release bearing)
O-rings/seals for hydraulic line connection where specified

Hydraulic line, clutch kit, and mounting bolts are not included unless specified by part number.

Check Before You Buy

Confirm gearbox code and engine variant — CSC designs vary even within the same model
Match hydraulic connector type, orientation, and bleed port style
Verify input shaft diameter and bolt pattern to gearbox
Always check OE/LuK part numbers against your VIN or registration

When to Replace

Difficulty engaging gears or a dragging clutch
Loss of hydraulic fluid or visible leaks from CSC housing
Spongy or sinking clutch pedal with no external leak at master cylinder
Noisy release bearing during clutch operation

Installation & Best Practice

Always replace the CSC when installing a new clutch — labour overlap is significant
Flush and replace clutch hydraulic fluid before bleeding the new CSC
Torque mounting bolts to OE specifications; avoid overtightening
Bleed thoroughly to remove air; follow manufacturer bleed sequence
Inspect hydraulic lines and master cylinder; replace if worn or damaged

Incorrect bleeding or contamination can lead to premature CSC failure — professional installation recommended.

Why Choose LuK

Trusted OE supplier for leading vehicle manufacturers
Designed and tested for durability under demanding conditions
Ensures smooth, light clutch operation and reduced pedal effort

Warranty: LuK Central Slave Cylinders include a manufacturer warranty against defects in material or workmanship when supplied via authorised distributors. Warranty may require proof of correct installation and fluid replacement. Your statutory rights remain unaffected.

Need help choosing? Provide your VIN or registration and gearbox code to confirm the exact LuK CSC for your vehicle.

Manufacturer	Productnumber
fiat	6000616052
fiat	6000616133
mercedes-benz	447 250 01 00 , 4472500100
mercedes-benz	447 250 02 00 , 4472500200
mercedes-benz	4472500100
mercedes-benz	4472500200
mercedes-benz	A 447 250 02 00 , A4472500200
mercedes-benz	A4472500200
nissan	30570-00Q0C , 3057000Q0C
nissan	30570-00Q0F , 3057000Q0F
nissan	30570-00Q0J , 3057000Q0J
nissan	30570-00Q1C , 3057000Q1C
nissan	30570-00Q1D , 3057000Q1D
nissan	30570-00Q1G , 3057000Q1G
nissan	30570-00Q1J , 3057000Q1J
nissan	30570-00QAB , 3057000QAB
nissan	30570-00QAD , 3057000QAD
nissan	3057000Q0C
nissan	3057000Q0F
nissan	3057000Q0J
nissan	3057000Q1C
nissan	3057000Q1D
nissan	3057000Q1G
nissan	3057000Q1J
nissan	3057000QAB
nissan	3057000QAD
opel	44 15 505 , 4415505
opel	44 16 385 , 4416385
opel	44 17 575 , 4417575
opel	44 21 631 , 4421631
opel	44 23 228 , 4423228
opel	44 32 435 , 4432435
opel	44 32 835 , 4432835
opel	44 35 231 , 4435231
opel	44 49 752 , 4449752
opel	44 52 962 , 4452962
opel	4415505
opel	4416385
opel	4417575
opel	4421631
opel	4423228
opel	4432435
opel	4432835
opel	4435231
opel	4449752
opel	4452962
opel	93161983
opel	93187200
opel	93196118
opel	93198488
opel	93198663
opel	93198874
opel	93813379
opel	95507609
opel	95518050
renault	30 62 024 43R , 306202443R
renault	306202443R
renault	82 00 157 765 , 8200157765
renault	82 00 420 721 , 8200420721
renault	82 00 629 060 , 8200629060
renault	82 00 654 808 , 8200654808
renault	82 00 680 860 , 8200680860
renault	82 00 785 483 , 8200785483
renault	82 00 790 630 , 8200790630
renault	82 00 828 530 , 8200828530
renault	82 00 846 744 , 8200846744
renault	82 00 846 753 , 8200846753
renault	82 00 902 784 , 8200902784
renault	82 00 902 797 , 8200902797
renault	82 01 290 863 , 8201290863
renault	82 01 290 864 , 8201290864
renault	8200157765
renault	8200420721
renault	8200629060
renault	8200654808
renault	8200680860
renault	8200785483
renault	8200790630
renault	8200828530
renault	8200846744
renault	8200846753
renault	8200902784
renault	8200902797
renault	8201290863
renault	8201290864
vauxhall	44 23 228 , 4423228
vauxhall	4423228
vauxhall	93 198 663 , 93198663
vauxhall	93198663
vauxhall	93198874
vauxhall	95 507 609 , 95507609
vauxhall	95507609
vauxhall	95518050

Usage numbers
AISIN CSCN-004
AISIN CSCN004
FTE 1100631
FTE ZA2607.4.1
FTE ZA260741
FTE ZA2608.7.1
FTE ZA260871
FTE ZA31042.3.7
FTE ZA3104237
SACHS 3182 600 168
SACHS 3182 600 202
SACHS 3182 600 249
SACHS 3182 654 210
SACHS 3182600168
SACHS 3182600202
SACHS 3182600249
SACHS 3182654210
TRW PJQ146
VALEO 1100631
VALEO 810067
VALEO 875040
