Outer diameter (mm)	65
Width (mm)	27
Svhc	no svhc present!

Product number: 534 0429 10

Ina Belt Tensioner V-ribbed Belt For Hyundai Kia Carnival / Grand Carnival Grand

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 58,07

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

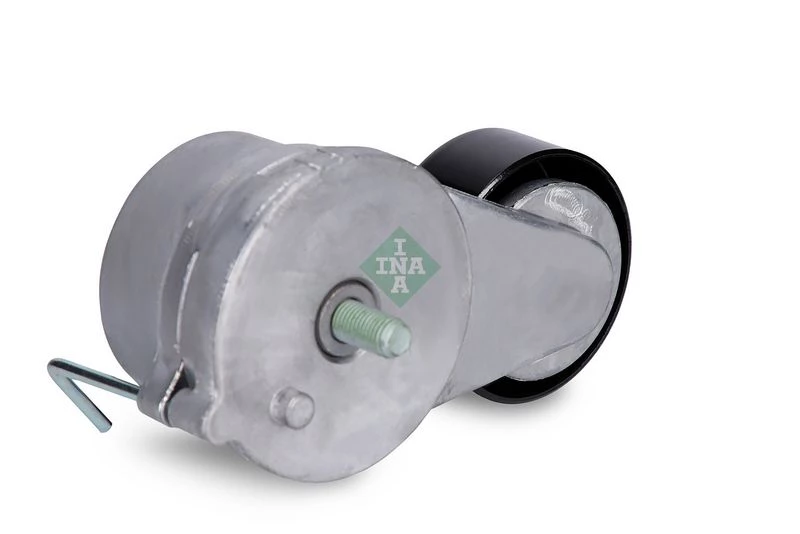

INA V‑ribbed belt tensioner 360 angle view

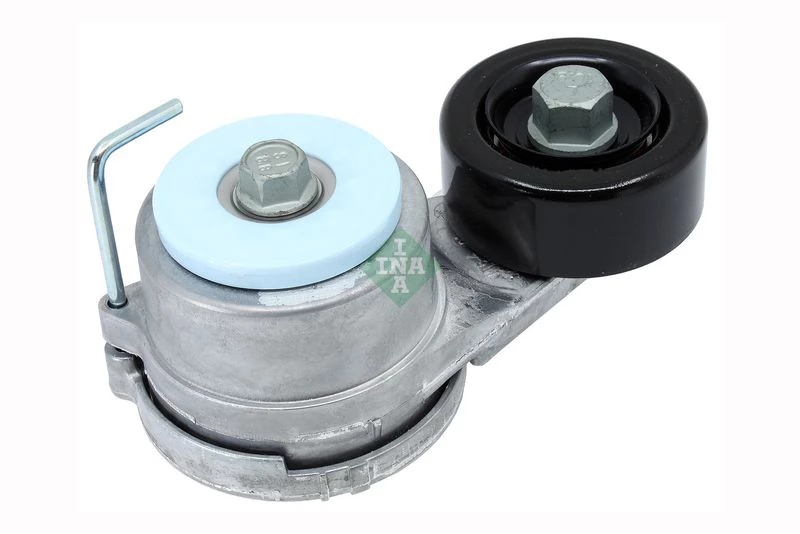

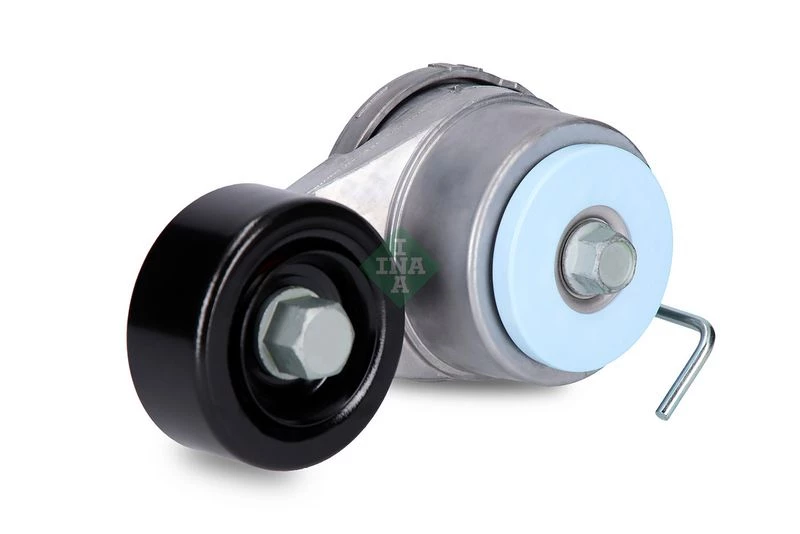

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
hyundai	25281-2F000 , 252812F000
hyundai	25281-2F001 , 252812F001
hyundai	25281-2F002 , 252812F002
hyundai	252812F000
hyundai	252812F001
hyundai	252812F002
kia	25281-2F000 , 252812F000
kia	25281-2F001 , 252812F001
kia	25281-2F002 , 252812F002
kia	252812F000
kia	252812F001
kia	252812F002

Usage numbers
DAYCO APV3188
GATES 7808-21675
GATES 780821675
GATES T39275
GMB GAT10040
OPTIMAL 0-N2247S
OPTIMAL 0N2247S
RUVILLE 58441
SCHAEFFLER GRUPPE 534 0429 10
SCHAEFFLER GRUPPE 534042910
SKF VKM 64070
SKF VKM64070
SNR GA384.12
SNR GA38412
