Supplementary article/info 2	requires special tools for mounting

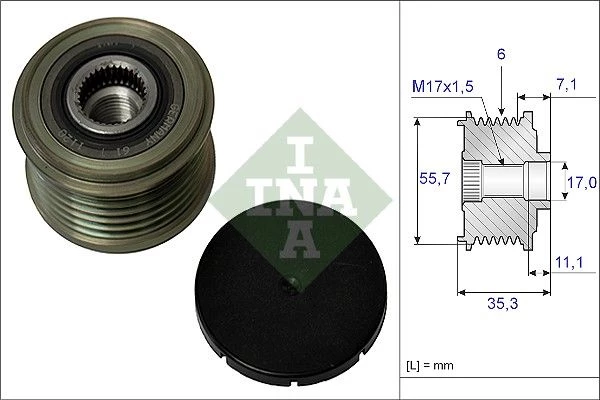

Width (mm)	35.3
Ø1/ Ø2 (mm)	55,7/17,0
For manufacturer number	f-234359.xx f-552016.xx
Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	7.1

Product number: 535 0037 10

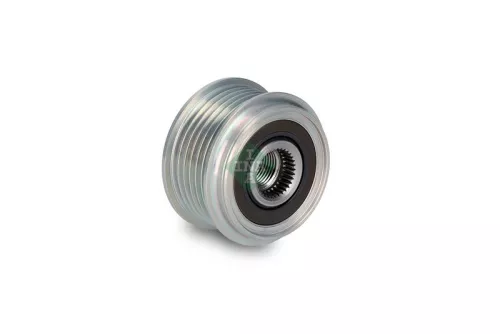

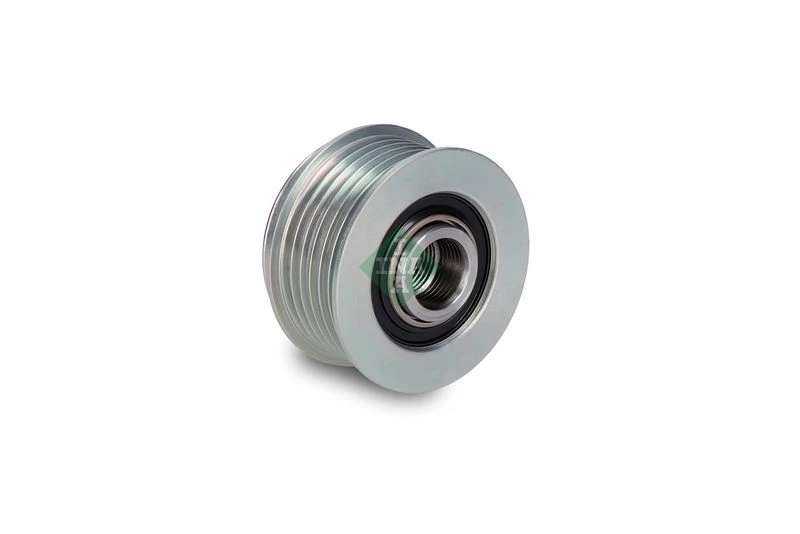

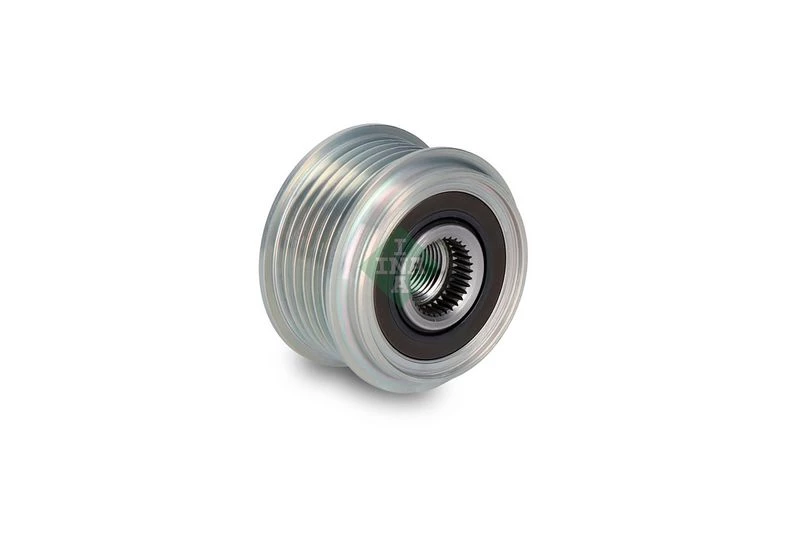

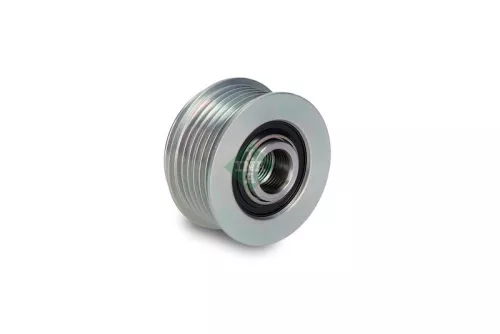

Ina Overrunning Alternator Clutch Pulley For Ford Transit

Out of stock

Price incl. vat.

£ 49,55

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
ford	1C1T-10300-BB , 1C1T10300BB
ford	1C1T10300BB
ford	4170444
case ih	8201 4508 , 82014508
case ih	82014508
new holland	8202 0011 , 82020011
new holland	82020011

Usage numbers
AS-PL AFP4005
BREDA LORETT CR 4050
BREDA LORETT CR4050
LUCAS ELECTRICAL LOPA0047
MAGNETI MARELLI 63321743
MAGNETI MARELLI 8362959
RUVILLE 57102
SCHAEFFLER GRUPPE 535 0037 10
SCHAEFFLER GRUPPE 535003710
Schaeffler INA F-234359
Schaeffler INA F-234359.03
Schaeffler INA F-234359.3
Schaeffler INA F-552016.01
Schaeffler INA F-552016.02
Schaeffler INA F234359
Schaeffler INA F23435903
Schaeffler INA F2343593
Schaeffler INA F55201601
Schaeffler INA F55201602
TRIPLE FIVE 235476
TRIPLE FIVE 3 3563 1
TRIPLE FIVE 335630
TRIPLE FIVE 335631
TRIPLE FIVE Y2022

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
