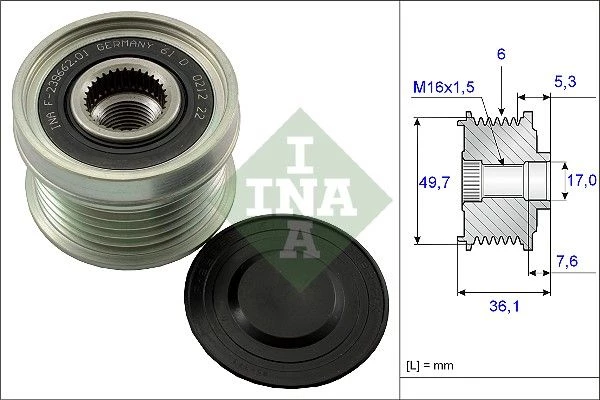

Supplementary article/info 2	requires special tools for mounting
Width (mm)	36.1
Ø1/ Ø2 (mm)	49,7/17,0
For manufacturer number	f-226387.xx f-239662.xx
Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	5.3

Product number: 535 0134 10

Ina Overrunning Alternator Clutch Pulley For Mercedes-benz Ssangyong Actyon Actyon Sports

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	3

Price excl. vat.

£ 32,61

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

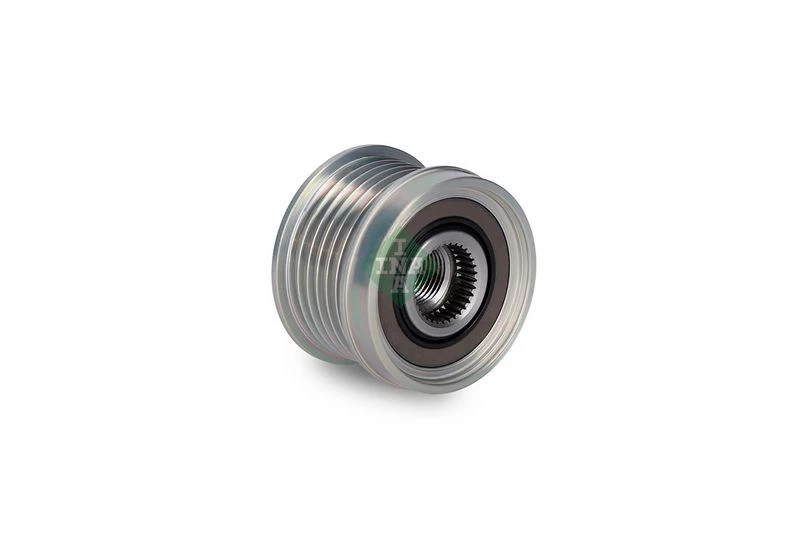

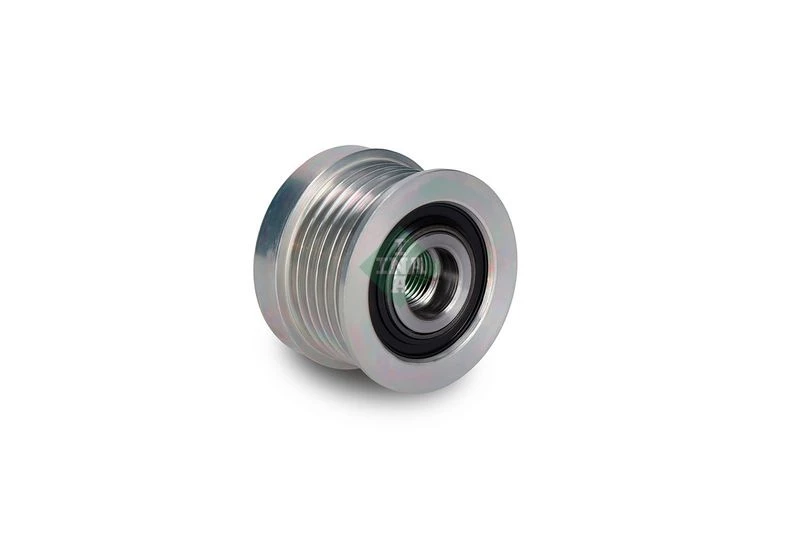

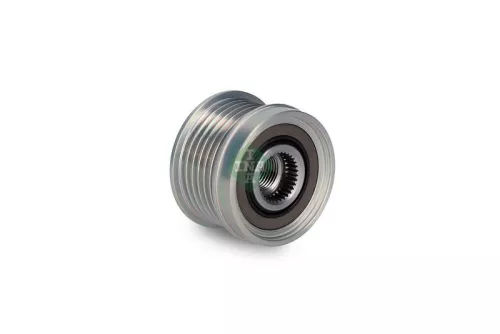

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
mercedes-benz	010 154 64 02 , 0101546402
mercedes-benz	010 154 65 02 , 0101546502
mercedes-benz	0101546402
mercedes-benz	0101546502
mercedes-benz	604 150 04 60 , 6041500460
mercedes-benz	604 150 06 60 , 6041500660
mercedes-benz	6041500460
mercedes-benz	6041500660
mercedes-benz	A 010 154 64 02 , A0101546402
mercedes-benz	A 010 154 65 02 , A0101546502
mercedes-benz	A 604 150 04 60 , A6041500460
mercedes-benz	A 604 150 06 60 , A6041500660
mercedes-benz	A0101546402
mercedes-benz	A0101546502
mercedes-benz	A6041500460
mercedes-benz	A6041500660
ssangyong	16215-43802 , 1621543802
ssangyong	1621543802
ssangyong	66215-531A5 , 66215531A5
ssangyong	66215-53315 , 6621553315
ssangyong	66215531A5
ssangyong	6621553315
ssangyong	66415-40002 , 6641540002
ssangyong	66415-40102 , 6641540102
ssangyong	6641540002
ssangyong	6641540102
ssangyong	66515-40202 , 6651540202
ssangyong	66515-40302 , 6651540302
ssangyong	6651540202
ssangyong	6651540302

Usage numbers
BOSCH 0 123 320 049
BOSCH 0 123 510 072
BOSCH 0 986 040 800
BOSCH 0123320049
BOSCH 0123510072
BOSCH 0986040800
BOSCH 1 126 601 580
BOSCH 1126601580
BOSCH F 00M 991 393
BOSCH F00M991393
BREDA LORETT CR 3895
BREDA LORETT CR3895
DAYCO ALP2381
DELPHI 220 682
DELPHI 220682
FEBI BILSTEIN 28387
GATES 7789-10112
GATES 778910112
GATES OAP7138
IPD 15-3186
IPD 15-3447
IPD 153186
IPD 153447
QUINTON HAZELL 1010103
QUINTON HAZELL RSE103
RUVILLE 58902
SCHAEFFLER GRUPPE 535 0134 10
SCHAEFFLER GRUPPE 535013410
Schaeffler INA F-226387
Schaeffler INA F-226387.04
Schaeffler INA F-226387.05
Schaeffler INA F-226387.07
Schaeffler INA F-226387.08
Schaeffler INA F-226387.09
Schaeffler INA F-226387.10
Schaeffler INA F-239662
Schaeffler INA F-239662.01
Schaeffler INA F-239662.02
Schaeffler INA F226387
Schaeffler INA F22638704
Schaeffler INA F22638705
Schaeffler INA F22638707
Schaeffler INA F22638708
Schaeffler INA F22638709
Schaeffler INA F22638710
Schaeffler INA F239662
Schaeffler INA F23966201
Schaeffler INA F23966202
SNR GA751.15
SNR GA75115
TRIPLE FIVE 235478
TRIPLE FIVE 3 3560 1
TRIPLE FIVE 335601
TRISCAN 8641 104017
TRISCAN 8641104017
VALEO 588078
ZEN 5529

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
