Width 1 (mm)	26.5
Number of teeth 1	122
Svhc	no svhc present!

Product number: 530 0175 10

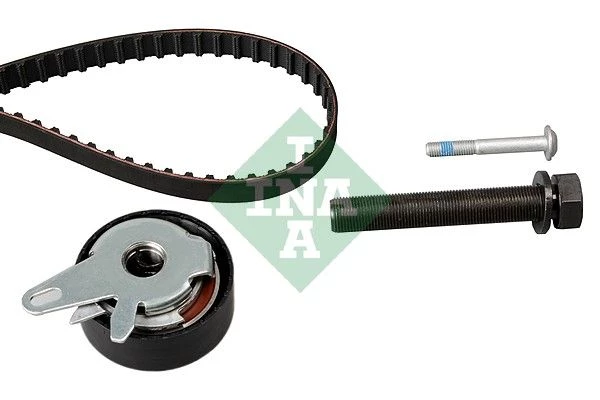

Ina Timing Belt Kit For Volvo Vw 850 Lt 28-35 Lt 28-46 S70 S80 Transporter V70

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	2

Price excl. vat.

£ 52,02

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	046 109 119 , 046109119
audi	046109119
audi	074 109 119 A , 074109119A
audi	074 109 119 B , 074109119B
audi	074 109 119 E , 074109119E
audi	074 109 119 R , 074109119R
audi	074 109 243 E , 074109243E
audi	074 109 243 M , 074109243M
audi	074 198 119 B , 074198119B
audi	074 198 119 G , 074198119G
audi	074 198 119 P , 074198119P
audi	074109119A
audi	074109119B
audi	074109119E
audi	074109119R
audi	074109243E
audi	074109243M
audi	074198119B
audi	074198119G
audi	074198119P
seat	046 109 119 , 046109119
seat	046109119
seat	074 109 119 A , 074109119A
seat	074 109 119 B , 074109119B
seat	074 109 119 E , 074109119E
seat	074 109 119 R , 074109119R
seat	074 109 243 E , 074109243E
seat	074 109 243 M , 074109243M
seat	074 198 119 B , 074198119B
seat	074 198 119 G , 074198119G
seat	074 198 119 P , 074198119P
seat	074109119A
seat	074109119B
seat	074109119E
seat	074109119R
seat	074109243E
seat	074109243M
seat	074198119B
seat	074198119G
seat	074198119P
skoda	046 109 119 , 046109119
skoda	046109119
skoda	074 109 119 A , 074109119A
skoda	074 109 119 B , 074109119B
skoda	074 109 119 E , 074109119E
skoda	074 109 119 R , 074109119R
skoda	074 109 243 E , 074109243E
skoda	074 109 243 M , 074109243M
skoda	074 198 119 B , 074198119B
skoda	074 198 119 G , 074198119G
skoda	074 198 119 P , 074198119P
skoda	074109119A
skoda	074109119B
skoda	074109119E
skoda	074109119R
skoda	074109243E
skoda	074109243M
skoda	074198119B
skoda	074198119G
skoda	074198119P
volvo	074109119E
volvo	074109119R
volvo	272462
volvo	8677053
volvo	9180593
volvo	9186258
volvo	9464100
volvo	9464101
volvo	94641016
vw	046 109 119 , 046109119
vw	046109119
vw	074 109 119 A , 074109119A
vw	074 109 119 B , 074109119B
vw	074 109 119 E , 074109119E
vw	074 109 119 R , 074109119R
vw	074 109 243 E , 074109243E
vw	074 109 243 M , 074109243M
vw	074 198 119 B , 074198119B
vw	074 198 119 G , 074198119G
vw	074 198 119 P , 074198119P
vw	074109119A
vw	074109119B
vw	074109119E
vw	074109119R
vw	074109243E
vw	074109243M
vw	074198119B
vw	074198119G
vw	074198119P

Usage numbers
BOSCH 1 987 948 049
BOSCH 1987948049
CONTINENTAL CTAM CT939K3
GATES K055323XS
HK RS1075
IPD 20-1075
IPD 201075
QUINTON HAZELL QBK651
RUVILLE 5547770
Saleri SIL K2PA1002
SCHAEFFLER GRUPPE 530 0175 10
SCHAEFFLER GRUPPE 530017510
SKF VKMA 01257
SKF VKMA 01258
SKF VKMA01257
SKF VKMA01258
SNR KD465.01
SNR KD46501
TRIPLE FIVE 321 6970
TRIPLE FIVE 3216970

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
volvo
vw
