Supplementary article/info 2	requires special tools for mounting

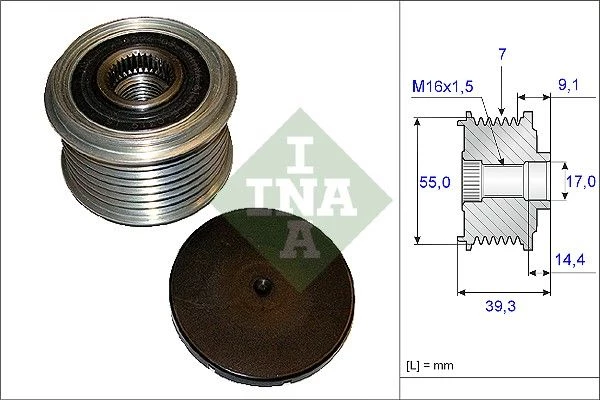

Width (mm)	39.3
Ø1/ Ø2 (mm)	55,0/17,0
For manufacturer number	f-238206.xx
Number of grooves	7
Svhc	no svhc present!
Distance to first groove (mm)	9.1

Product number: 535 0142 10

Ina Overrunning Alternator Clutch Pulley For Byd Hyundai Kia Borrego Ix55 M6 S6

Out of stock

Price incl. vat.

£ 20,51

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

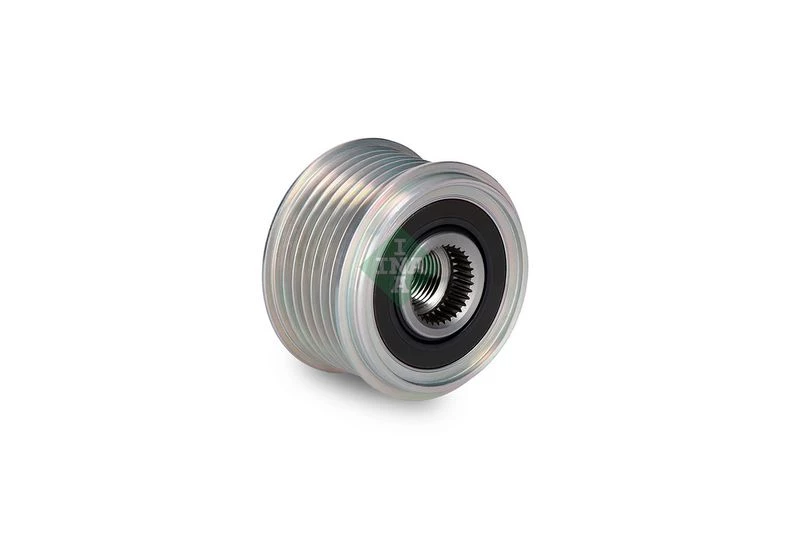

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
hyundai	37300-3A002 , 373003A002
hyundai	373003A002
hyundai	37311-3A000 , 373113A000
hyundai	373113A000
hyundai	37321-3A010 , 373213A010
hyundai	373213A010
kia	37300-3A002 , 373003A002
kia	373003A002
kia	37311-3A000 , 373113A000
kia	373113A000
kia	37321-3A010 , 373213A010
kia	373213A010

Usage numbers
BREDA LORETT CR 5319
BREDA LORETT CR5319
FEBI BILSTEIN 10193
RUVILLE 58427
SCHAEFFLER GRUPPE 535 0142 10
SCHAEFFLER GRUPPE 535014210
Schaeffler INA F-238206
Schaeffler INA F-238206.01
Schaeffler INA F-238206.02
Schaeffler INA F-238206.03
Schaeffler INA F-238206.04
Schaeffler INA F238206
Schaeffler INA F23820601
Schaeffler INA F23820602
Schaeffler INA F23820603
Schaeffler INA F23820604
TRIPLE FIVE BA011019301
TRIPLE FIVE JA011-0193
TRIPLE FIVE JA0110193
TRIPLE FIVE JFZ1929AQ
VALEO 2655149
VALEO 2655601
VALEO K408206
ZEN 5722

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
hyundai
kia

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
