Supplementary article/info 2	requires special tools for mounting
For manufacturer number	f-586767.xx
Svhc	no svhc present!

Product number: 535 0233 10

Ina Overrunning Alternator Clutch Pulley For Suzuki Jimny

Out of stock

Price incl. vat.

£ 31,40

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

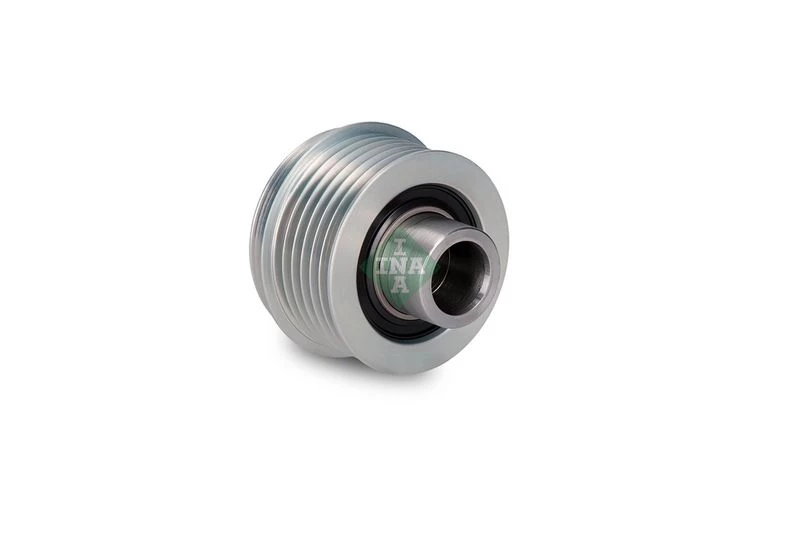

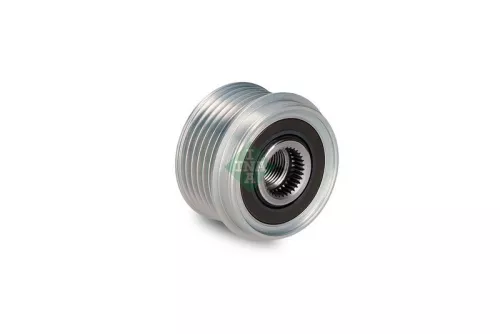

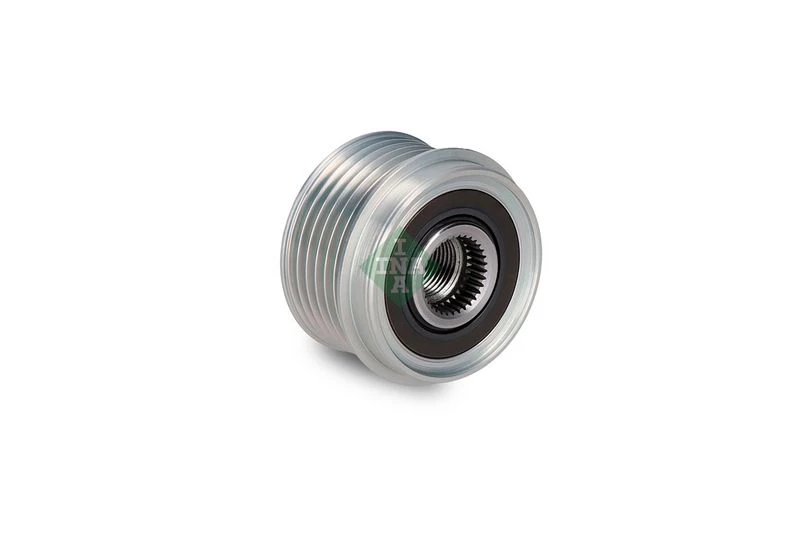

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
suzuki	31171-84A10 , 3117184A10
suzuki	3117184A10
suzuki	31400-84A00-000 , 3140084A00000
suzuki	31400-84A10-000 , 3140084A10000
suzuki	31400-84A12-000 , 3140084A12000
suzuki	3140084A00000
suzuki	3140084A10000
suzuki	3140084A12000

Usage numbers
AS-PL AFP5019
BREDA LORETT CR 5557
BREDA LORETT CR5557
FEBI BILSTEIN 47589
NSK-RHP 91215
REMY DRA 0232
REMY DRA0232
RUVILLE 57713
SCHAEFFLER GRUPPE 535 0233 10
SCHAEFFLER GRUPPE 535023310
Schaeffler INA F-586767
Schaeffler INA F586767
SKF VKM 06602
SKF VKM06602
TRIPLE FIVE 235877
TRIPLE FIVE 3 5498 1
TRIPLE FIVE 354261
TRIPLE FIVE 354981
TRIPLE FIVE A003TN2581
TRIPLE FIVE A003TN2581A
TRIPLE FIVE A3TN2581
TRIPLE FIVE A3TN2581A
TRIPLE FIVE GA755.10
TRIPLE FIVE GA75510
ZEN 5724

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
suzuki
