Supplementary article/info 2	requires special tools for mounting
For manufacturer number	f-227820.07/.14 f-227820.04/.05/.06

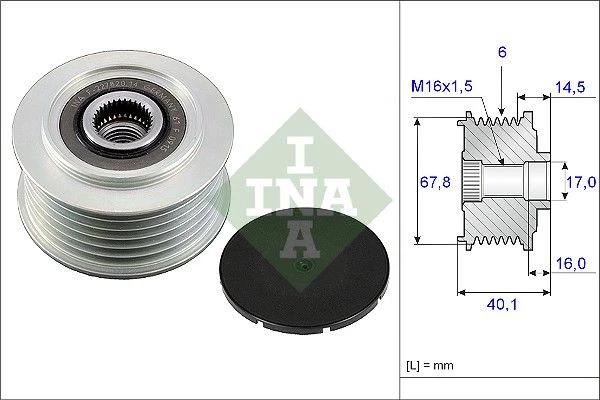

Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	14.5

Product number: 535 0047 10

Ina Overrunning Alternator Clutch Pulley For Vw California Transporter

Out of stock

Price incl. vat.

£ 54,39

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

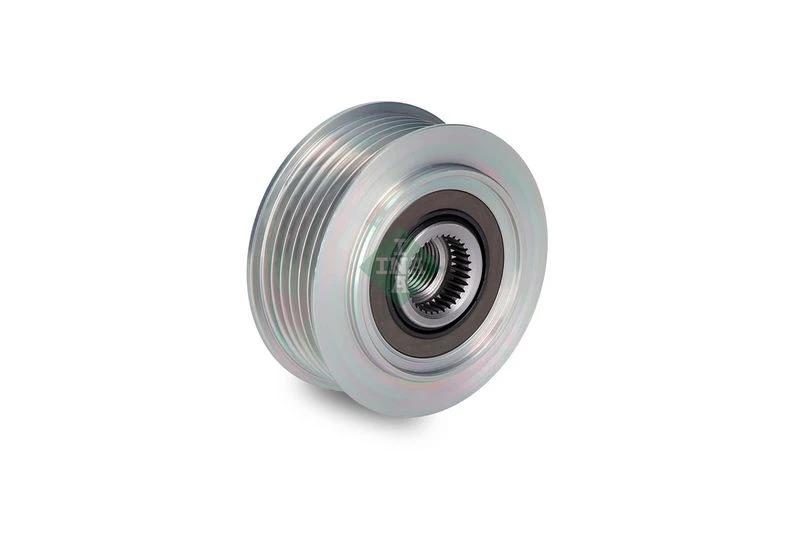

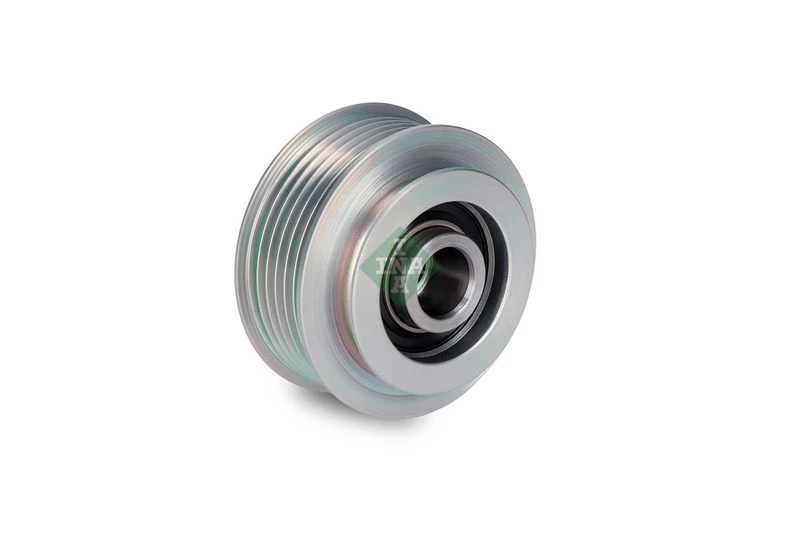

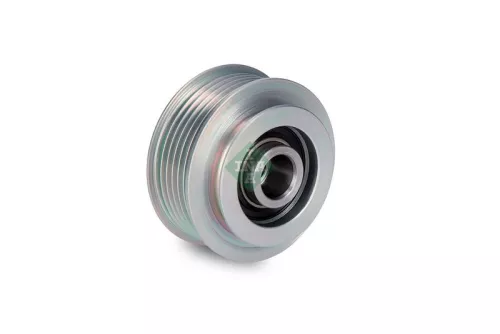

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
audi	074 903 025 L , 074903025L
audi	074 903 025 LX , 074903025LX
audi	074 903 119 E , 074903119E
audi	074903025L
audi	074903025LX
audi	074903119E
seat	074 903 025 L , 074903025L
seat	074 903 025 LX , 074903025LX
seat	074 903 119 E , 074903119E
seat	074903025L
seat	074903025LX
seat	074903119E
skoda	074 903 025 L , 074903025L
skoda	074 903 025 LX , 074903025LX
skoda	074 903 119 E , 074903119E
skoda	074903025L
skoda	074903025LX
skoda	074903119E
vw	074 903 025 L , 074903025L
vw	074 903 025 LX , 074903025LX
vw	074 903 119 E , 074903119E
vw	074903025L
vw	074903025LX
vw	074903119E

Usage numbers
AS-PL AFP0032
BOSCH 0 123 520 014
BOSCH 0 986 080 080
BOSCH 0123520014
BOSCH 0986080080
BOSCH 1 126 601 556
BOSCH 1 127 011 861
BOSCH 1126601556
BOSCH 1127011861
BOSCH F 00M 061 005
BOSCH F 00M 991 394
BOSCH F00M061005
BOSCH F00M991394
DAYCO ALP2355
FEBI BILSTEIN 29964
GATES 7789-10026
GATES 778910026
GATES OAP7068
HK G732
HUTCHINSON DB0260
IPD 12-0732
IPD 120732
LUCAS ELECTRICAL LOPA0040
RUVILLE 55722
SCHAEFFLER GRUPPE 535 0047 10
SCHAEFFLER GRUPPE 535004710
Schaeffler INA F-227820.04
Schaeffler INA F-227820.05
Schaeffler INA F-227820.06
Schaeffler INA F-227820.07
Schaeffler INA F-227820.14
Schaeffler INA F22782004
Schaeffler INA F22782005
Schaeffler INA F22782006
Schaeffler INA F22782007
Schaeffler INA F22782014
SKF VKM 03104
SKF VKM03104
TRIPLE FIVE 335670
TRIPLE FIVE GA754.19
TRIPLE FIVE GA75419
TRIPLE FIVE Y2028

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
