Supplementary article/info 2	requires special tools for mounting

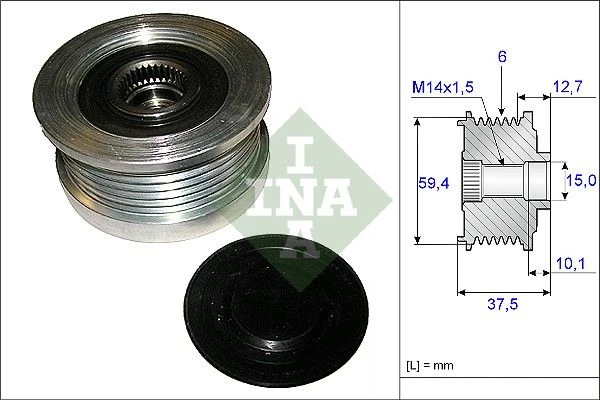

Width (mm)	37.5
Ø1/ Ø2 (mm)	59,4/15,0
For manufacturer number	f-233106.xx
Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	12.7

Product number: 535 0110 10

Ina Overrunning Alternator Clutch Pulley For Hyundai Accent Getz Matrix

Out of stock

Price incl. vat.

£ 37,45

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

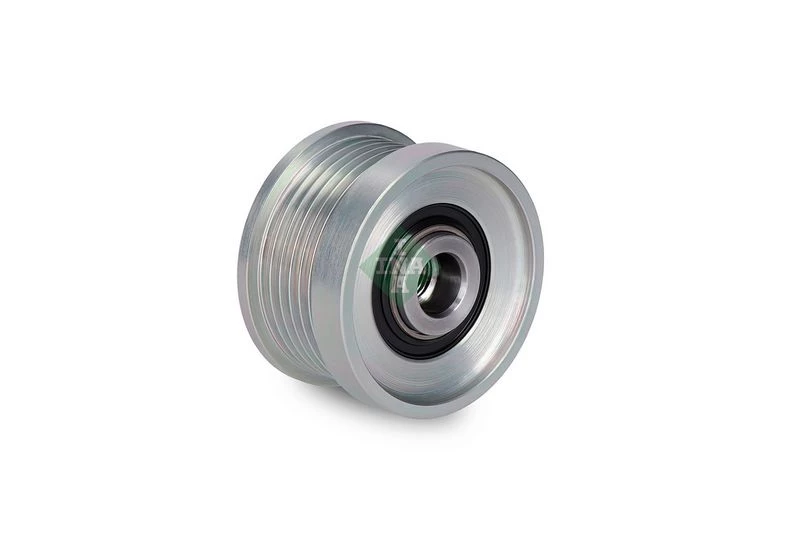

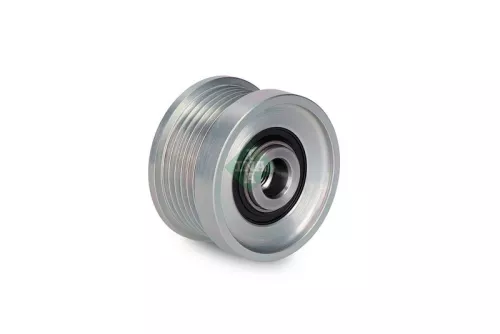

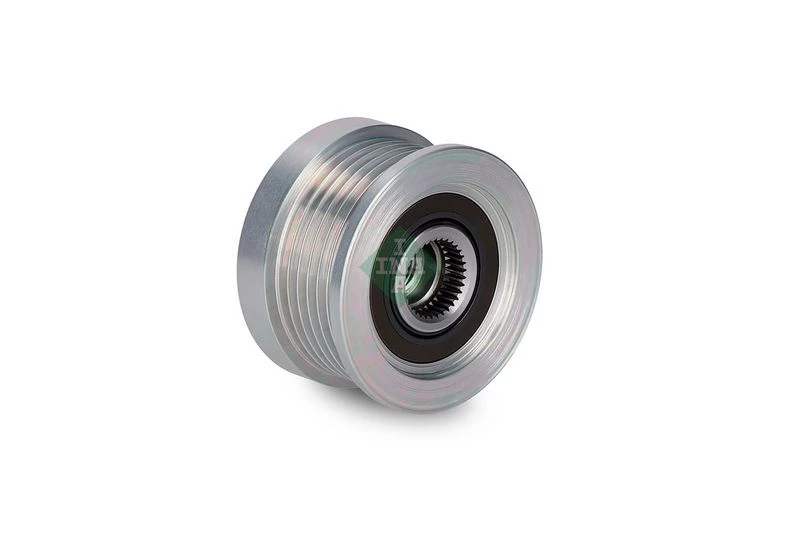

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
hyundai	37300-27502 , 3730027502
hyundai	37300-27503 , 3730027503
hyundai	37300-27504 , 3730027504
hyundai	37300-27600 , 3730027600
hyundai	37300-27601 , 3730027601
hyundai	37300-27602 , 3730027602
hyundai	3730027502
hyundai	3730027503
hyundai	3730027504
hyundai	3730027600
hyundai	3730027601
hyundai	3730027602
hyundai	37322-27500 , 3732227500
hyundai	37322-27501 , 3732227501
hyundai	3732227500
hyundai	3732227501
kia	37300-27502 , 3730027502
kia	37300-27503 , 3730027503
kia	37300-27504 , 3730027504
kia	37300-27600 , 3730027600
kia	37300-27601 , 3730027601
kia	37300-27602 , 3730027602
kia	3730027502
kia	3730027503
kia	3730027504
kia	3730027600
kia	3730027601
kia	3730027602
kia	37322-27500 , 3732227500
kia	37322-27501 , 3732227501
kia	3732227500
kia	3732227501

Usage numbers
AS-PL AFP6001
BREDA LORETT CR 3854
BREDA LORETT CR3854
CONTINENTAL CTAM AP9062
DAYCO ALP2429
DENSO 081020-0010
DENSO 081020-0011
DENSO 0810200010
DENSO 0810200011
DENSO 100213-2940
DENSO 100213-2950
DENSO 100213-2980
DENSO 100213-2991
DENSO 1002132940
DENSO 1002132950
DENSO 1002132980
DENSO 1002132991
FEBI BILSTEIN 34667
GATES OAP7271
RUVILLE 59938
SCHAEFFLER GRUPPE 535 0110 10
SCHAEFFLER GRUPPE 535011010
Schaeffler INA F-233106.01
Schaeffler INA F-233106.03
Schaeffler INA F-233106.04
Schaeffler INA F-233106.05
Schaeffler INA F-233106.06
Schaeffler INA F-233106.1
Schaeffler INA F23310601
Schaeffler INA F23310603
Schaeffler INA F23310604
Schaeffler INA F23310605
Schaeffler INA F23310606
Schaeffler INA F2331061
SKF VKM 06500
SKF VKM06500
TRIPLE FIVE 237500
TRIPLE FIVE 3 5356 1
TRIPLE FIVE 353560
TRIPLE FIVE 353561
TRIPLE FIVE GA784.02
TRIPLE FIVE GA78402
VALEO 588076
ZEN 5578
